Roof Deck (RD1)

Roof Deck (RD1)

Roof Deck (RD1) Roof Deck (RD1)

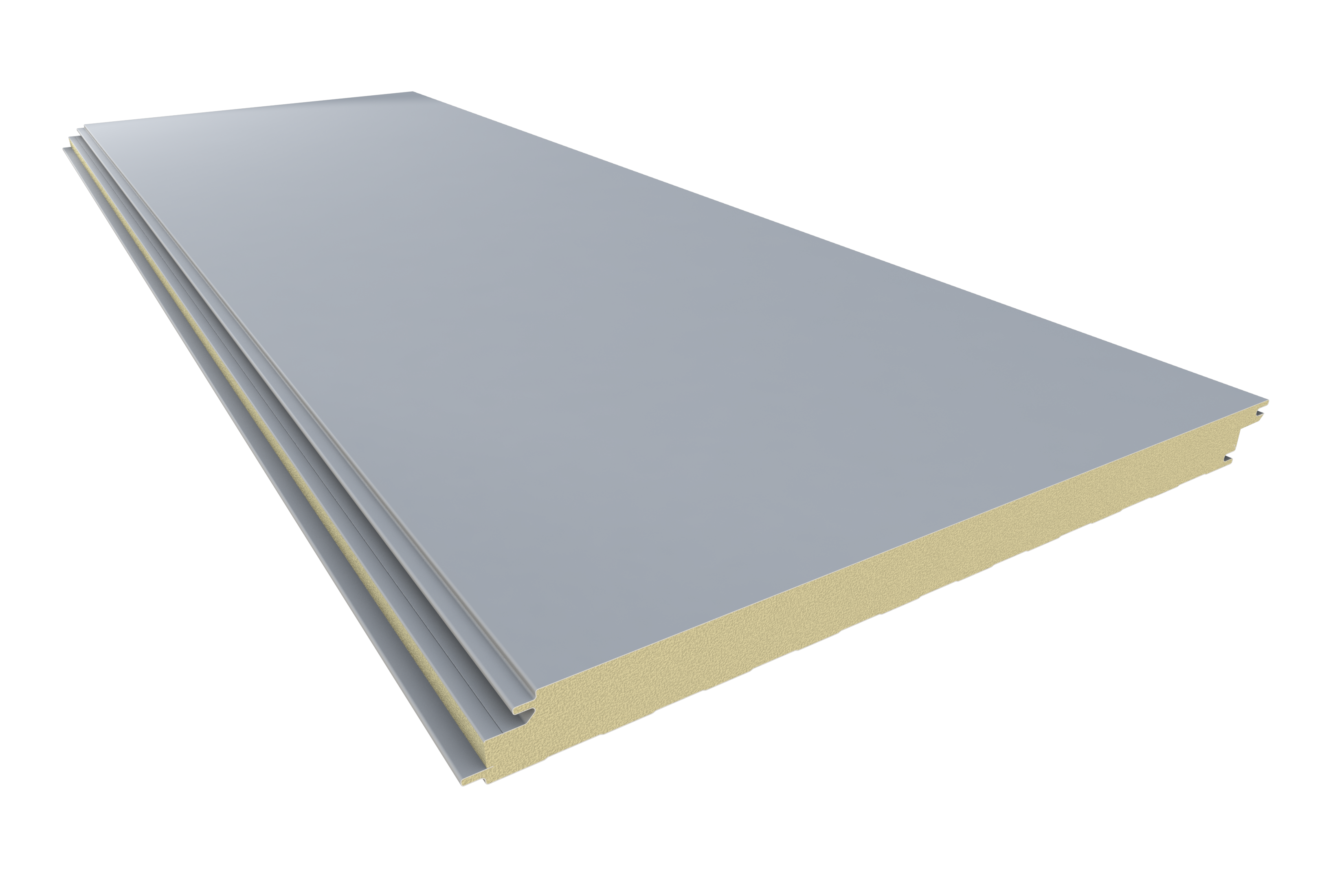

Our insulated metal roof panels offer premium R values and energy efficiency. The RD1 Roof Deck panel combines into a single component the steel deck, insulation and substrate necessary for white single ply membrane or non-structural standing seam roof coverings — an economical alternative to rigorous and expensive field-assembled roof deck systems.

PRODUCT PARAMETERS

Panel Thickness:

2”

2.5”

3”

4”

5”

6”

Insulating Values (R):**

16

20

24

32

41

49



Panel Length: from 8’ to 50’ standard maximumStandard Panel Width: 40”

Insulation Material: CFC-free foamed-in-place polyisocyanurate foam 2.1 to 2.5 pcf density

Joint Configuration: offset tongue and groove

Metal facings: 22ga (smooth) & 24ga (embossed)

Coatings: Imperial White

Accessories: fasteners, concealed fastener clips, sealants, brake formed flashings



**R-Value tested in accordance with ASTM C518/C1363 at 40oF mean temperature, adjusted for a windspeed of 15 mph.

Roof Deck (RD1) Roof Deck (RD1)

FEATURES AND BENEFITS

  • The top side substrate can be either primed steel or an approved facer depending on the roof covering attachment requirements.
  • Allows for a working platform during installation.
  • Superior deflection resistance.
  • Pre-painted 26ga Imperial White embossed reflective interior.
  • Easier installation with fewer required trades.
  • Eliminates potential for interstitial condensation.
  • Meets similar diaphragm shear resistance properties as 1.5″ deep 22ga B deck @ 60″ span between supports.
