Wood Grain (MV40-W)

Wood Grain (MV40-W) Insulated Metal Panels Vacaville California

Wood Grain (MV40-W) Wood Grain (MV40-W)

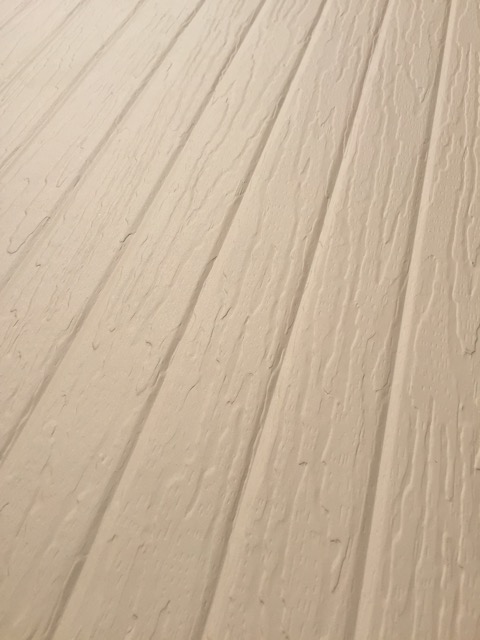

A “retro” look with a wide grain for insulated metal panels, making any metal building stylish with high R values and premium energy efficiency. The bold low gloss wood grain pattern coupled with our micro-rib profile creates a scored plywood appearance. This unique wall panel comes in four standard colors and includes a long life factory finished paint system along with the exceptional performance characteristics of a composite insulated panel.


Panel Thickness:





Insulating Values (R):**





Panel Width: 40”

Panel Length: from 8’ to 40’ maximum.

Insulation Material: CFC-free foamed-in-place polyisocyanurate foam 2.1 to 2.5 pcf density.

Joint Configuration: offset tongue and groove with concealed fastener.

Metal facings: 26ga galvanized steel (24ga available).

Coatings: 25-year ceramic polyester.

Accessories: fasteners, concealed fastener clips, sealants, brake formed flashings.

Wood Grain low gloss panels are available in Sandstone, Surrey Beige, Pearl Gray and Regal White colors.

Available in fiRe 1-hour rated panel: MV40W-F (4.5” R-32)

**R-Value tested in accordance with ASTM C518/C1363 at 40oF mean temperature, adjusted for a windspeed of 15 mph.

With the extremely high thermal resistance (R value) of our polyurethane foam core insulated metal wall and roof panels, which are capable of reaching above R-50, All Weather Insulated Panel products dramatically improve the efficiency of the building thermal envelope.  Customers can expect new projects utilizing our insulated metal panels (IMPs) to use two-thirds or less of the energy in a typical existing home or structure.
Wood Grain (MV40-W) Wood Grain (MV40-W)


  • The profile and finish provides for a bold non-metallic wood grain planked look.

  • 25-year limited paint warranty against chalking, fading and loss of adhesion.

  • The panel’s overlapping joint is self-aligning and allows
    for easy sealant application at the panel joinery.

  • The standard exterior metal surface is 26ga G-90 galvanized steel with durable ceramic polyester coatings.

  • The standard interior metal surface is 26ga
    Imperial White.

  • The panel arrives on site in one piece and requires a
    simple one step installation reducing construction time
    and costs.
