Mesa (DM45)

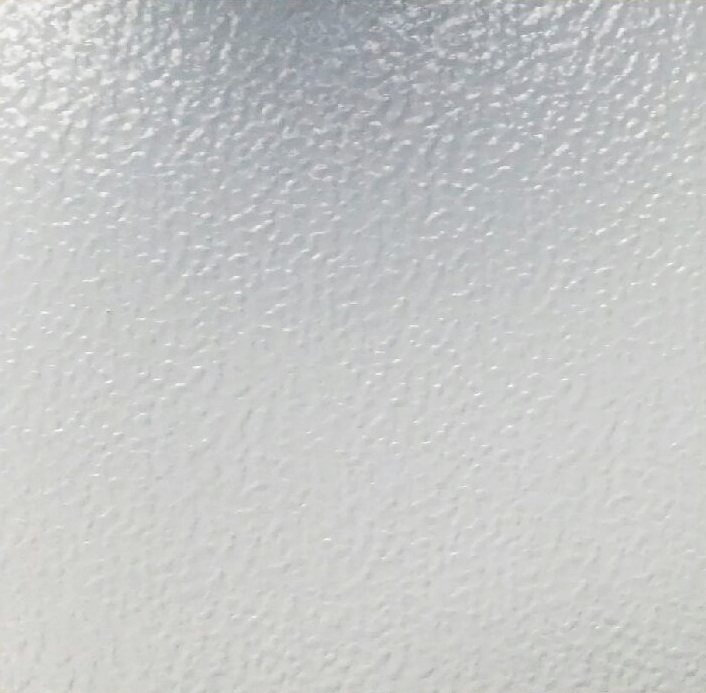

Mesa (DM45). insulated metal wall panels are another economical choice for exterior walls and interior walls and ceilings of cold storage facilities. The Mesa (DM45). panel is our widest cold storage panel and features monolithic tongue and groove joinery for fast, easy installation. This panel is available in thicknesses up to 6”, offering superior thermal performance for cold storage buildings. Panels are embossed and lightly planked providing a uniform exterior wall aesthetic. In addition, panels are available in lengths up to 50 feet long which can minimize panel end joint conditions and improve installation time.



Product Selection

Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value ** Installation Orientation Specialty  Info
Mesa (DM45) 45″ 8′ – 50′ Max 3″ 24 Vertical Cold Storage Interior Wall & Ceiling Applications
4″ 32
5″ 41
6″ 49
** R-Value tested in accordance with ASTM C518/C1363 at 40° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Sth. Gauge Available Gauge Profile Sth. Gauge Available Gauge
Mesa (DM45) Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 & 26 Ga. Stainless Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 & 26 Ga. Stainless Polyester Std. Polyester  Std.



Technical Data

Mesa (DM45) Insulated Metal Wall Panel

Gallery

Features / Benefits

  • The 3/32” low profile exposed surface simplifies face sealing of joints and trim terminations when required for heavy processing environments
  • The 45” net width reduces both the number of longitudinal joints to thermally seal and the number of panels to install
  • The standard highly durable 26ga exposed steel facing(s) with an embossed, high heat coil coated paint finish are perfect for most interior applications
  • The structural integrity of the DM45 panel allows for exceptional spans between supports on interior walls and ceilings
  • The panel arrives on site in one piece and requires a simple one-step installation reducing construction time and costs

Technical Data

Mesa (DM45) Insulated Metal Wall Panel

Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value ** Installation Orientation Specialty  Info
Mesa (DM45) 45″ 8′ – 50′ Max 3″ 24 Vertical Cold Storage Interior Wall & Ceiling Applications
4″ 32
5″ 41
6″ 49
** R-Value tested in accordance with ASTM C518/C1363 at 40° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Sth. Gauge Available Gauge Profile Sth. Gauge Available Gauge
Mesa (DM45) Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 & 26 Ga. Stainless Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 & 26 Ga. Stainless Polyester Std. Polyester  Std.
