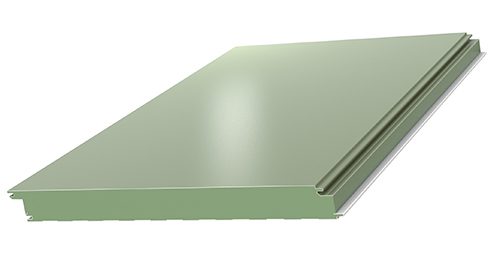

RD1 Roof Deck

The OneDek®RD1 flat roof deck panel combines into a single component steel deck, insulation, air / vapor barrier and substrate necessary for field application of a white, single-ply TPO or PVC membrane for low slope roofs.  RD1 is high performance, sustainable and an economic alternative to field-assembled roof deck systems.

Product Selection

Roof Deck Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value ** Specialty  Info
RD1 Roof Deck 40″ Std. 8′ – 50′ Max 2″ 16 Low Slope Substrate for Single Ply Membrane Roof ———– Shear Diaphragm Resistance Available
2.5″ 20
4″ 32
5″ 41
6″ 49
8″ 62
RD5 Roof Deck 40″ Std. 8′ – 50′ Max 2.5″ 20 Low Slope Substrate for Single Ply Membrane Roof ———– Longer Spans
4″ 32
5″ 41
6″ 49
** R-Value tested in accordance with ASTM C518/C1363 at 40° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Roof Deck Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Sth. Gauge Available Gauge Profile Sth. Gauge Available Gauge
RD1 Roof Deck Flat Smooth 26 G-90 Galv. 24, 22 Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 Primed or approved Facer Polyester  Std.
RD5 Roof Deck Flat Smooth 26 G-90 Galv. 24, 22 1-3/8″ Deep Trapazoidal Ribs 10″ o.c. 26 G-90 Galv. 24, 22 Primed or approved Facer Polyester  Std.

Technical Data

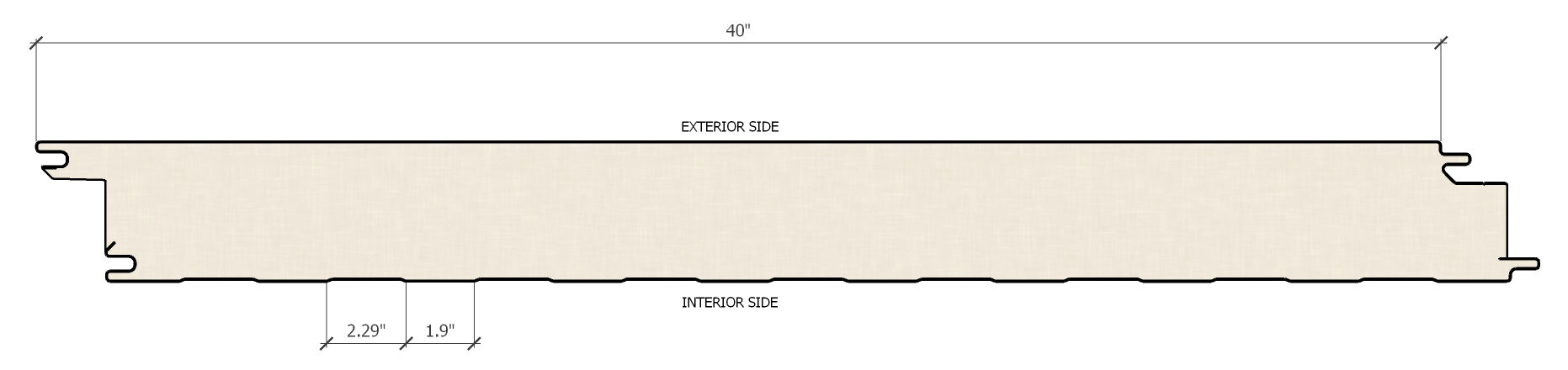

RD1 Roof Deck

Gallery

Features / Benefits

Higher Performance
  • Higher R-value per inch of insulation
  • Superior resistance to transverse load
  • Durable steel surface that supports foot traffic
  • Steel facing is impermeable to air and water
  • Will not absorb moisture during or after installation
  • Diaphragm and non-diaphragm fastening patterns available
Faster Installation
  • Fewer components and and fastening requirments reduces the complexity and time to install the roof deck
Sustainability
  • Increased R-value per inch
  • Reduces material waste on site
  • Reduces freight to the jobsite
Aesthetics
  • Factory coil coating on the interior skin allows for consistent quality and color flexibility vs field painting of the deck

Technical Data

RD1 Roof Deck

Roof Deck Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value ** Specialty  Info
RD1 Roof Deck 40″ Std. 8′ – 50′ Max 2″ 16 Low Slope Substrate for Single Ply Membrane Roof ———– Shear Diaphragm Resistance Available
2.5″ 20
4″ 32
5″ 41
6″ 49
8″ 62
RD5 Roof Deck 40″ Std. 8′ – 50′ Max 2.5″ 20 Low Slope Substrate for Single Ply Membrane Roof ———– Longer Spans
4″ 32
5″ 41
6″ 49
** R-Value tested in accordance with ASTM C518/C1363 at 40° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Roof Deck Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Sth. Gauge Available Gauge Profile Sth. Gauge Available Gauge
RD1 Roof Deck Flat Smooth 26 G-90 Galv. 24, 22 Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 Primed or approved Facer Polyester  Std.
RD5 Roof Deck Flat Smooth 26 G-90 Galv. 24, 22 1-3/8″ Deep Trapazoidal Ribs 10″ o.c. 26 G-90 Galv. 24, 22 Primed or approved Facer Polyester  Std.
