fiRe Fire Rated Wall Panel

Look no further for a 1-Hour fire rated wall with superior performance and uncompromised aesthetics. Our 1-hour fiRe rated exterior wall and interior partition panel is factory assembled from a unique combination of tried-and-true cladding components resulting in a building composite that provides superior performance in all categories compared with other fire rated wall assemblies. fiRe 1-hour walls are designed to match all standard AWIP facing profiles and finishes.

Product Selection



Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value Hourly Fire Rating Installation Orientation Joint Confifuration Specialty  Info

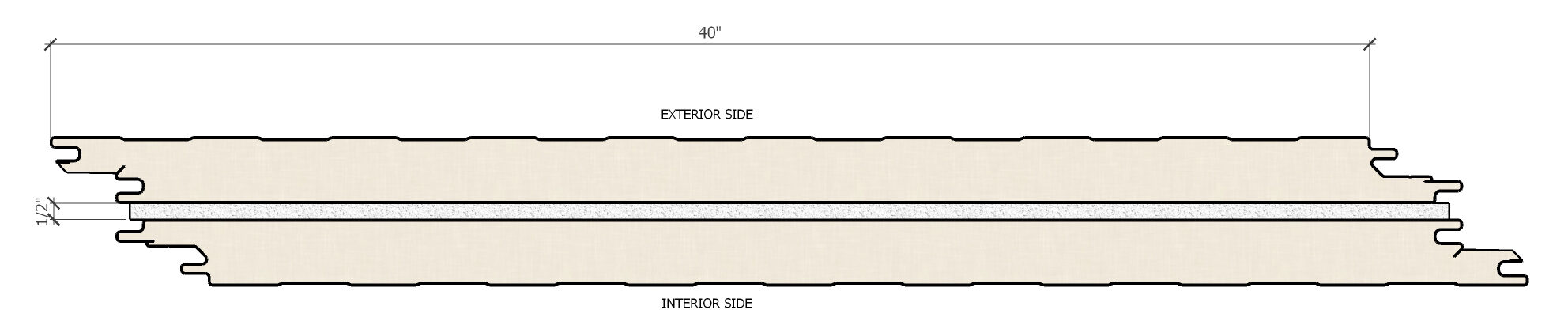

fiRe 40″ 8′ – 40′ Max 4.5″ 32  ** 1 Hr Vertical or Horizontal Double offset tongue and groove joinery with concealed fasteners Superior Performance compared to Mineral Wool core sandwich panels
** R-Value tested in accordance with ASTM C518/C1363 at 40° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Sth. Gauge Available Gauge Profile Sth. Gauge Available Gauge
fiRe Available in all standard 40″ wall profiles – DM, HE, ST, FL 26 G-90 Galv. 24, 22 Embossed & Planked 26 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester Std. PVDF & SMP Available

Technical Data

fiRe Fire Rated Wall Panel

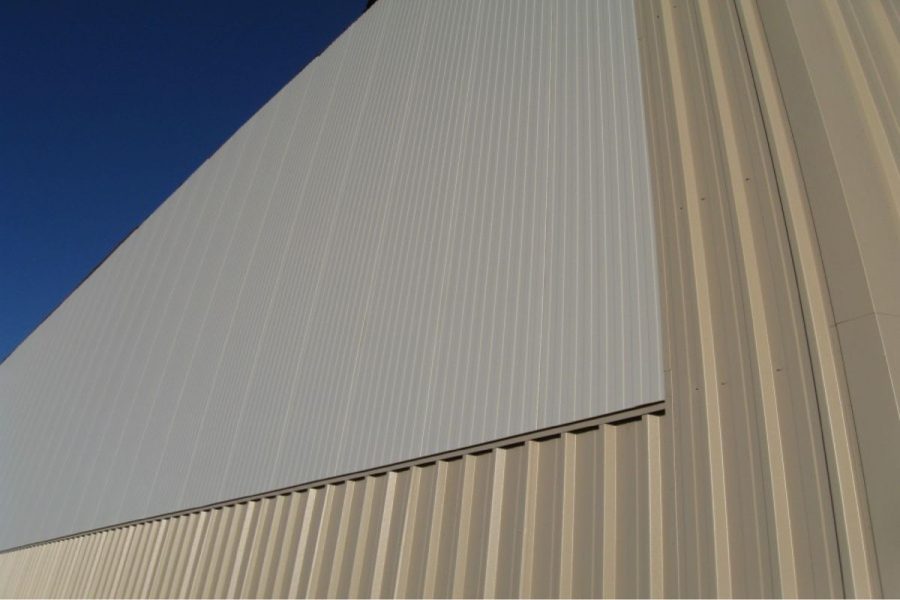

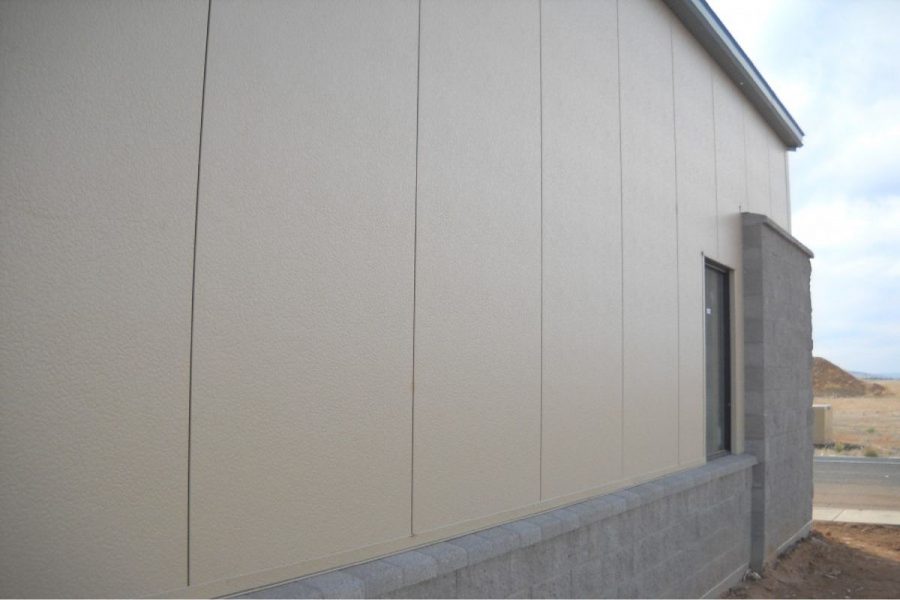

Gallery

Features / Benefits

  • Double the R-Value of other hourly rated sandwich panels
  • Factory assembled panel results in one-step installation
  • Structurally superior to mineral wool sandwich panels
  • Durable assembly is resistant to deflection, breakage and moisture penetration
  • Available in all standard AWIP wall profiles – DM, HE, ST, FL
  • Hidden fasteners at joints

Technical Data

fiRe Fire Rated Wall Panel



Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value Hourly Fire Rating Installation Orientation Joint Confifuration Specialty  Info
fiRe 40″ 8′ – 40′ Max 4.5″ 32  ** 1 Hr Vertical or Horizontal Double offset tongue and groove joinery with concealed fasteners Superior Performance compared to Mineral Wool core sandwich panels
** R-Value tested in accordance with ASTM C518/C1363 at 40° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Sth. Gauge Available Gauge Profile Sth. Gauge Available Gauge
fiRe Available in all standard 40″ wall profiles – DM, HE, ST, FL 26 G-90 Galv. 24, 22 Embossed & Planked 26 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester Std. PVDF & SMP Available
