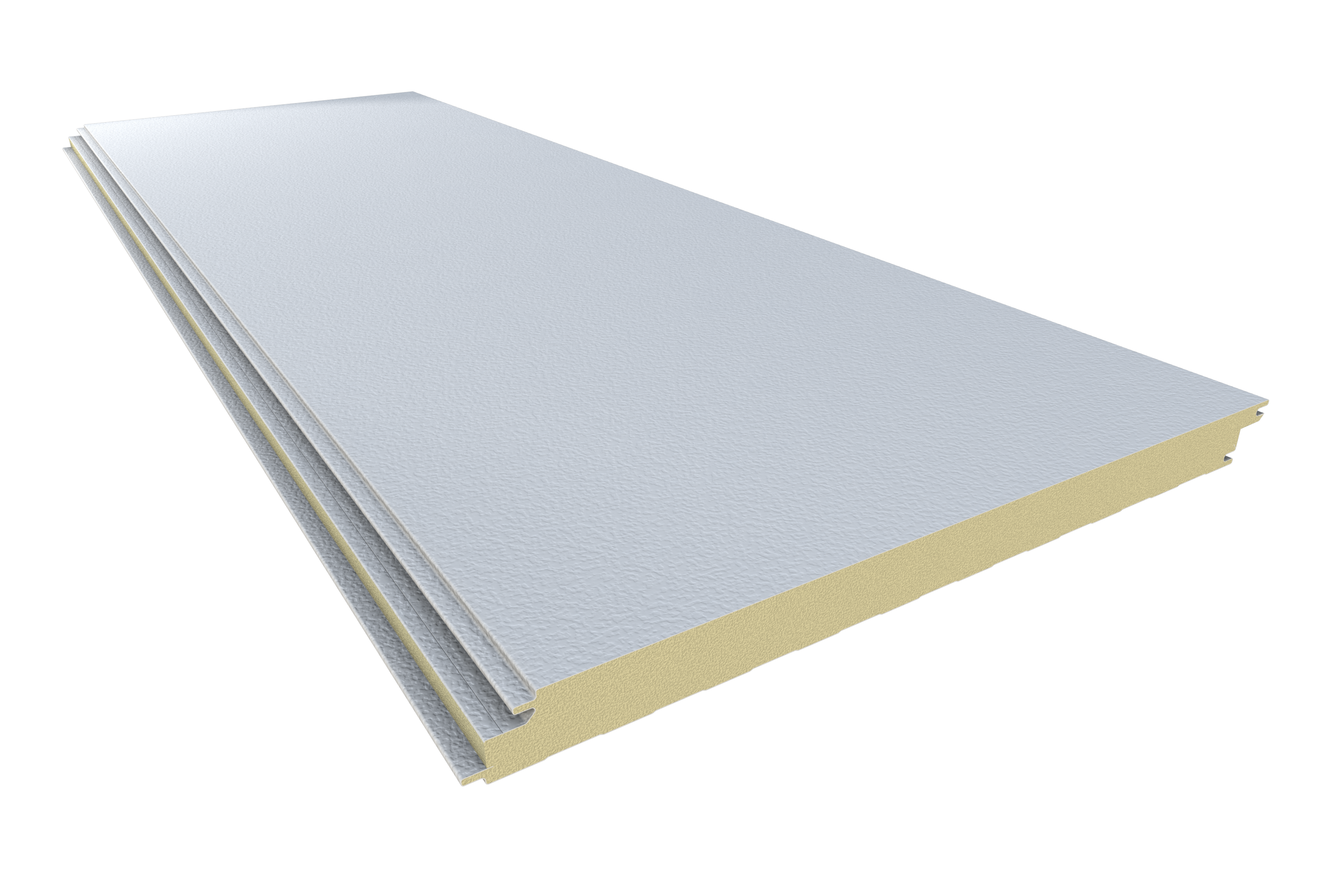

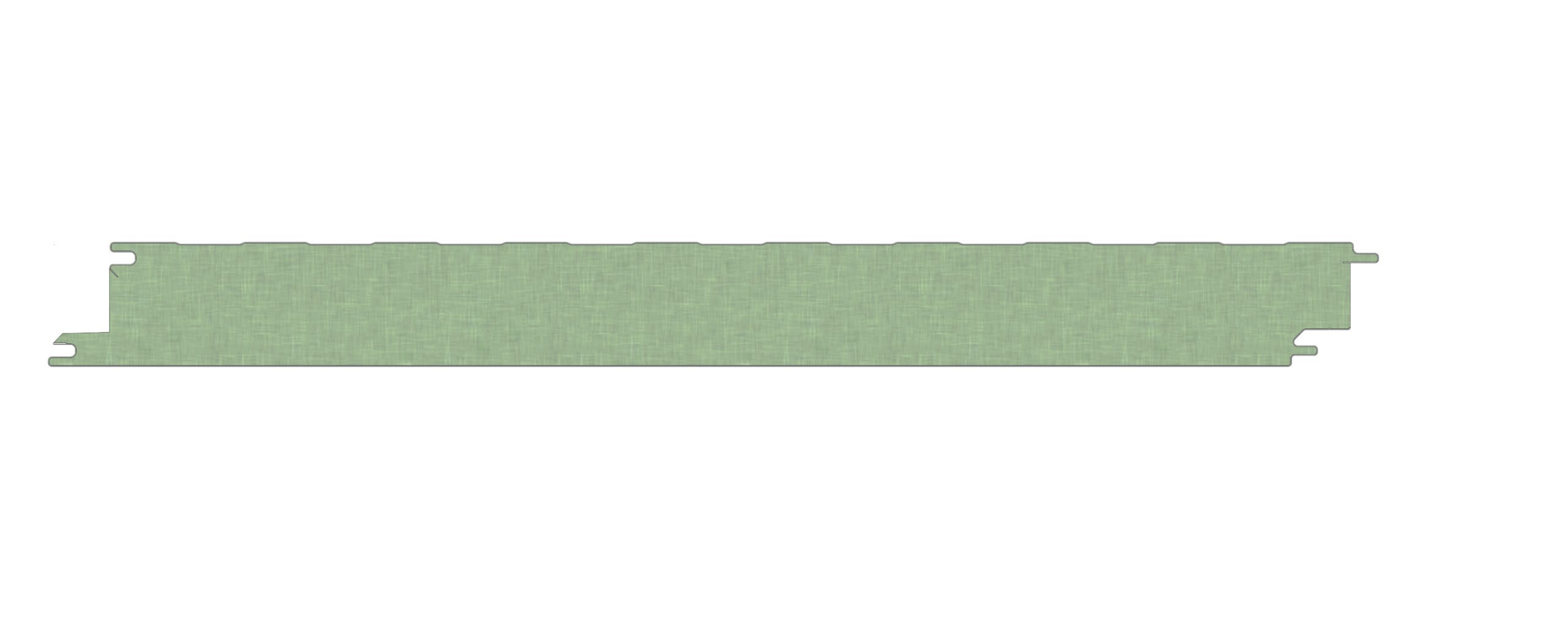

AdobeTexture® (HE40A)

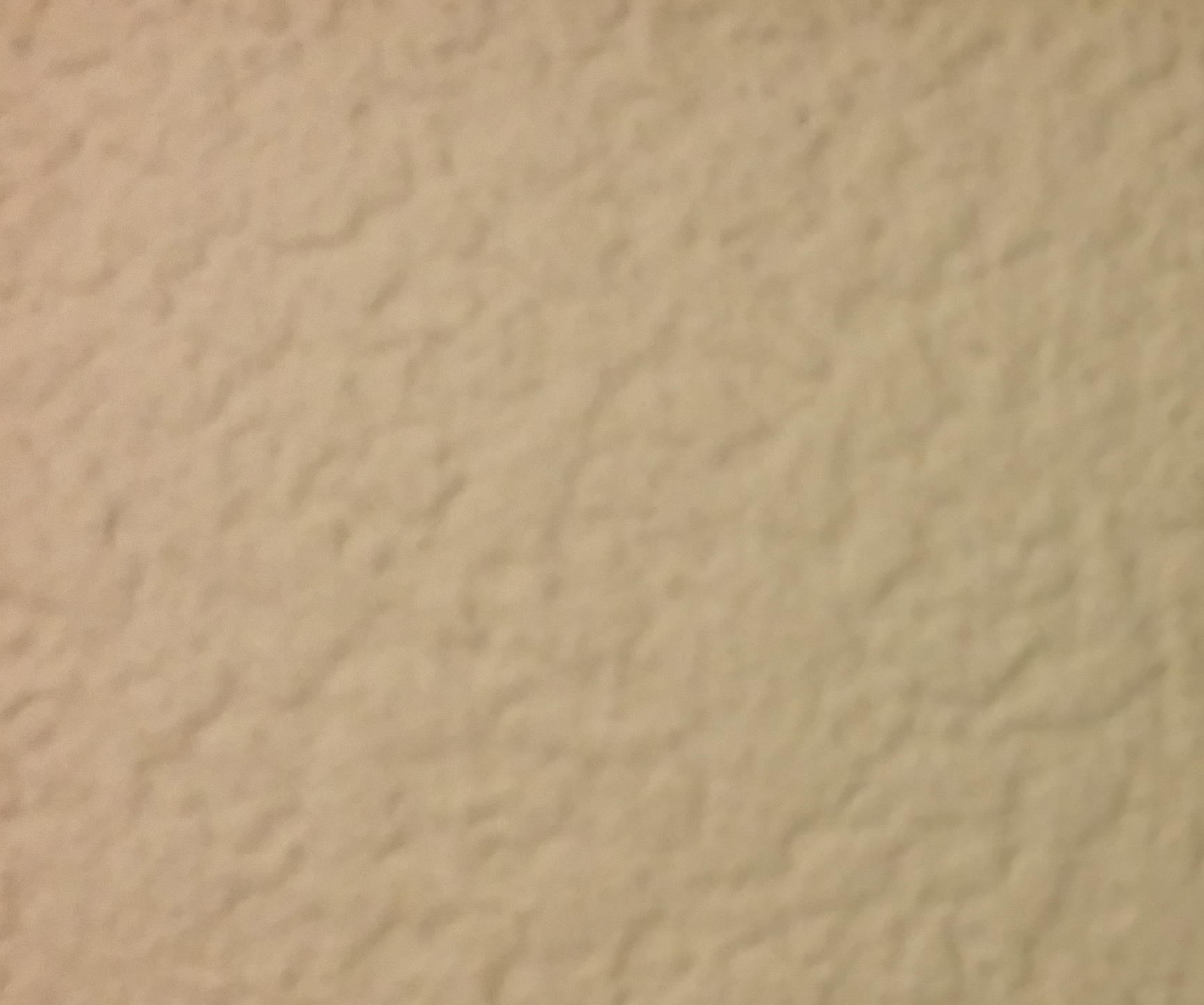

Break away from the ordinary with our unique AdobeTexture® (HE40A) insulated metal wall panel. This insulated metal panel offers a special multi-textured profile and matte finish that offers an appearance similar to troweled stucco. All without the need for additional factory or field-applied stucco coatings. Like all of our insulated metal panels, AdobeTexture® (HE40) offer superb R-values, long-term energy efficiency and easy one-step installation for reduced construction costs.

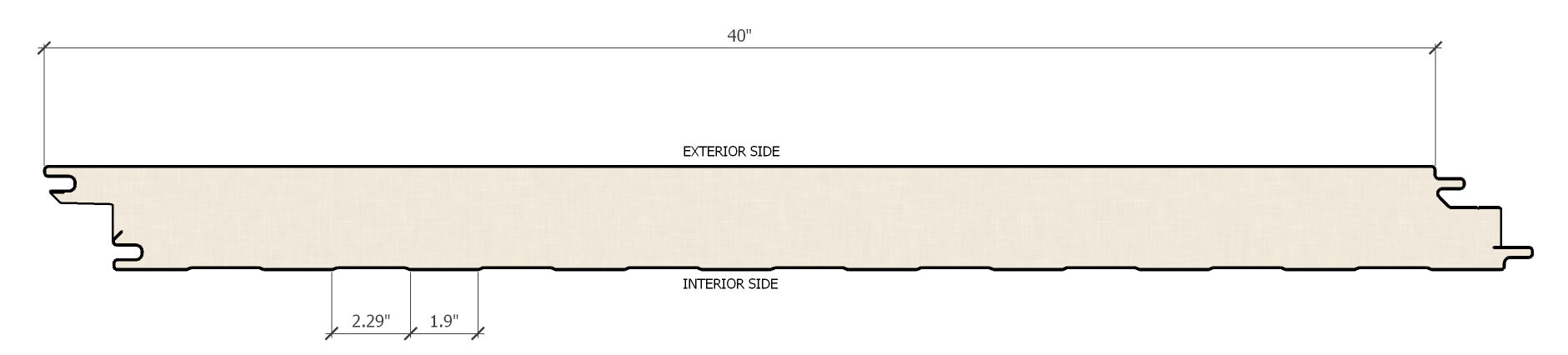

Product Selection

Panel Width(s) Lengths Thicknesses Insulating Properties  “R” Value  ** Installation Orientation Specialty  Info
AdobeTexture® (HE40A) 40″ 8′ – 40′ Max 2″ 16 Vertical or Horizontal Patented AdobeTexture® Finish System
2.5″ 20
3″ 24
4″ 32
** R-Value tested in accordance with ASTM C518 at 35° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Std. Gauge Available Gauge Profile Std. Gauge Available Gauge
AdobeTexture® (HE40A) FlatTroweled Stucco 26 G-90 Galv. _ Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 AdobeTexture® Finish Polyester Std. PVDF & SMP Available

Technical Data

AdobeTexture® (HE40A) Insulated Metal Panels

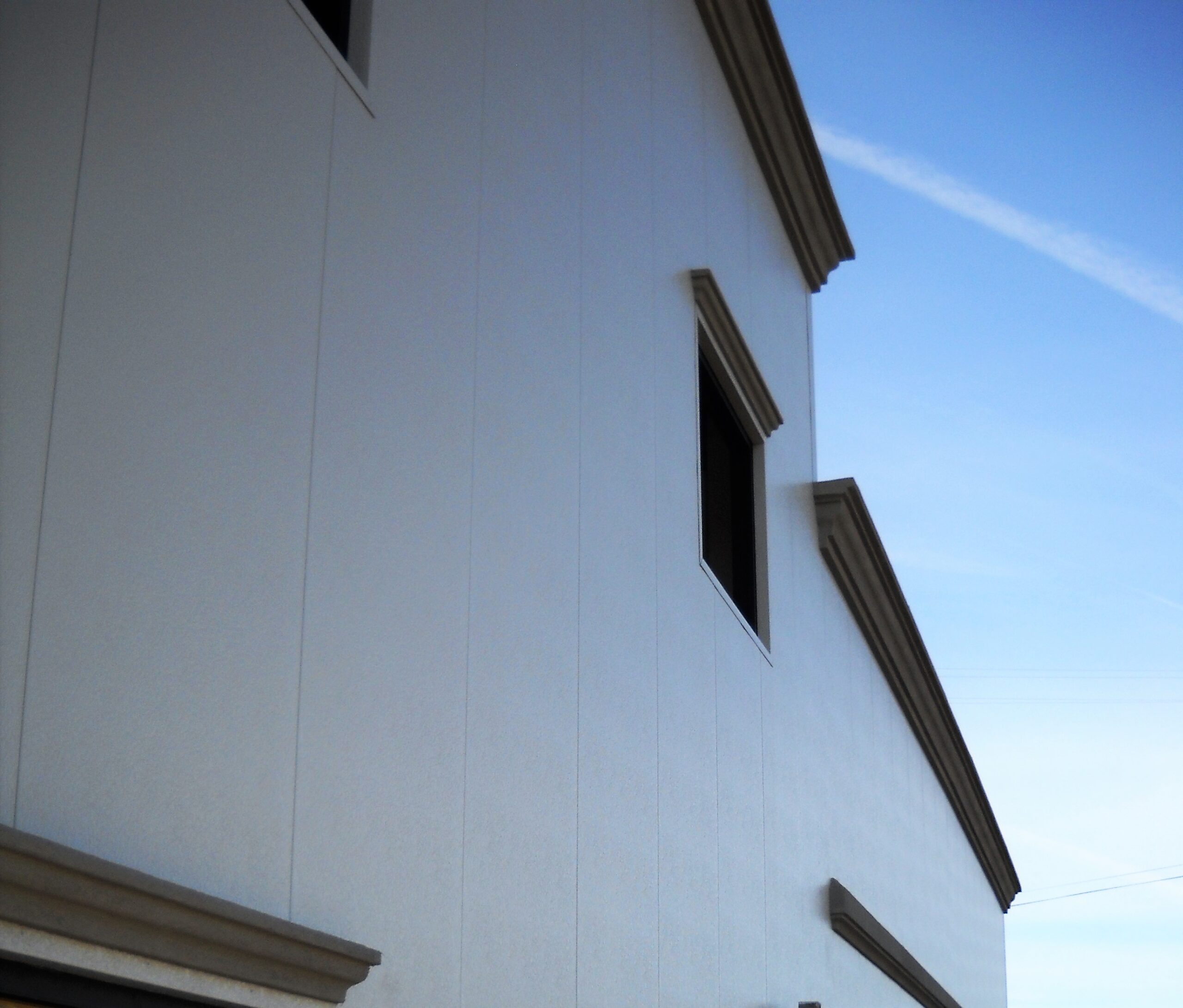

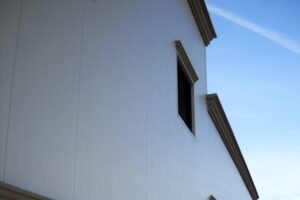

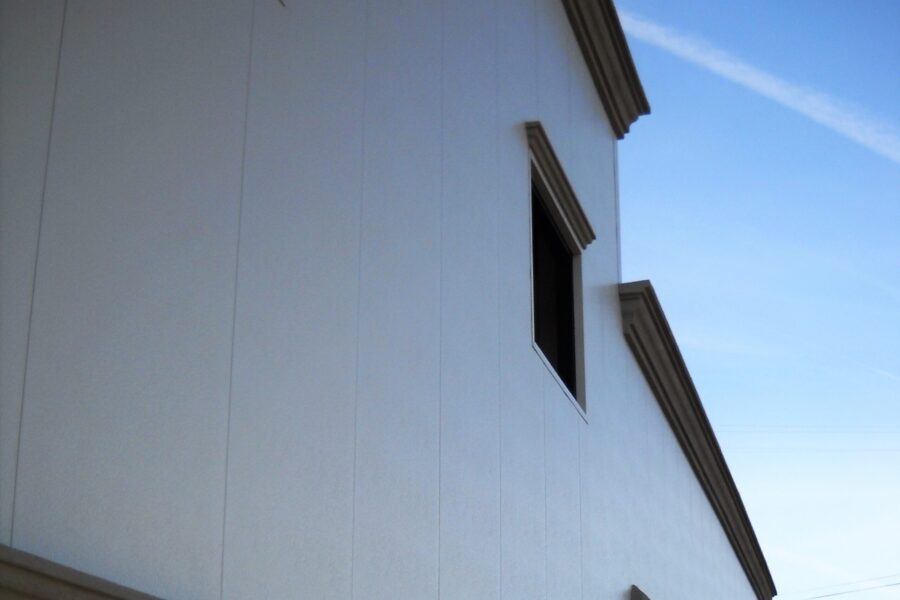

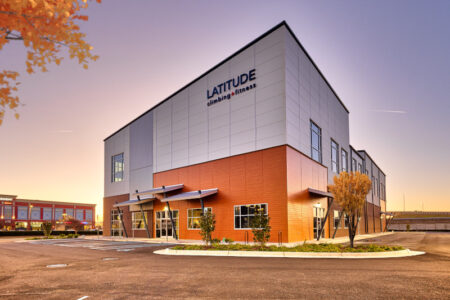

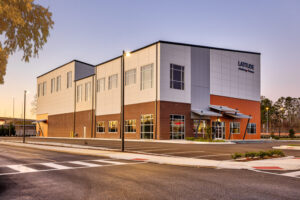

Gallery

Features / Benefits

  • Proprietary stucco texture and appearance in an insulated metal wall panel. Eliminates
    field application of stucco coatings
  • Matching AdobeTexture® trim available
  • One panel total wall design includes exterior aesthetic, weather barrier, insulation, and
    vapor barrier
  • The panel arrives on site in one piece and requires a simple one-step installation
    reducing construction time and costs
  • Panel joinery is designed to permit installation of the panel in a vertical or horizontal
    position





Technical Data

AdobeTexture® (HE40A) Insulated Metal Panels

Panel Width(s) Lengths Thicknesses Insulating Properties  “R” Value  ** Installation Orientation Specialty  Info
AdobeTexture® (HE40A) 40″ 8′ – 40′ Max 2″ 16 Vertical or Horizontal Patented AdobeTexture® Finish System
2.5″ 20
3″ 24
4″ 32
** R-Value tested in accordance with ASTM C518 at 35° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Std. Gauge Available Gauge Profile Std. Gauge Available Gauge
AdobeTexture® (HE40A) FlatTroweled Stucco 26 G-90 Galv. _ Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 AdobeTexture® Finish Polyester Std. PVDF & SMP Available
