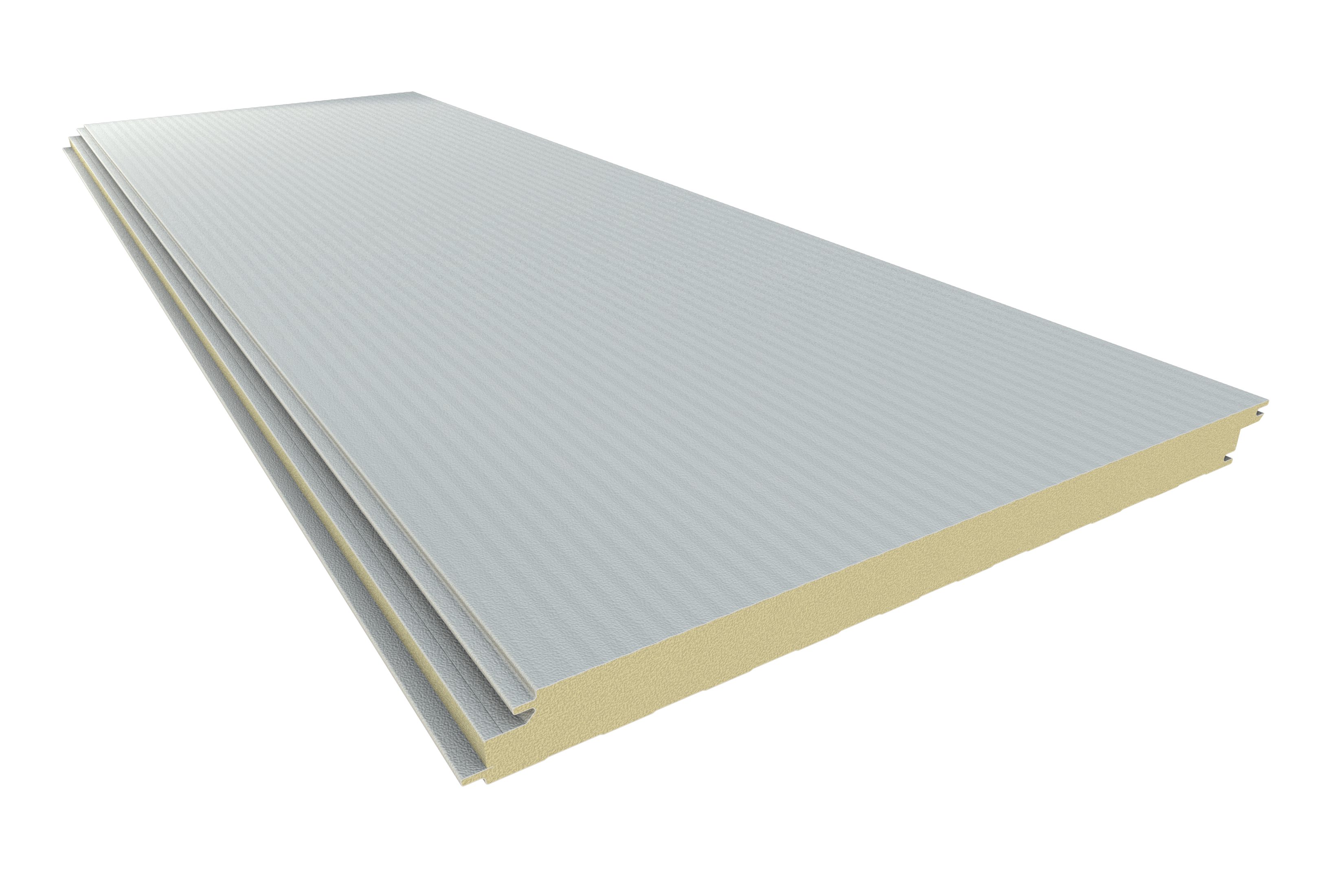

Striated (ST40)

Our Striated insulated metal wall panel offers an extremely economical exterior or interior solution where a flat, clean appearance is desired. The nominal embossed striations add rigidity and ensure an acceptable flatness tolerance. These panels are an ideal solution to create a modern facade for light commercial buildings, warehouses, schools, shopping centers and industrial facilities.


Accessories are available including: fasteners, concealed fastener clips, sealants, brake formed flashings.

Product Selection

Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value  ** Installation Orientation Specialty  Info
Striated (ST40) 40″  Std. 36″ Available 8′ – 40′ Max 2″ 16 Vertical or Horizontal Available in fiRe 1-hour rated panel: ST40-F (4.5” = R-32)
2.5″ 20
3″ 24
4″ 32
** R-Value tested in accordance with ASTM C518 at 35° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Std. Gauge Available Gauge Profile Std. Gauge Available Gauge
Striated (ST40) Embossed & Striated 24 G-90 Galv. 24, 22 Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester  Std. PVDF & SMP Available

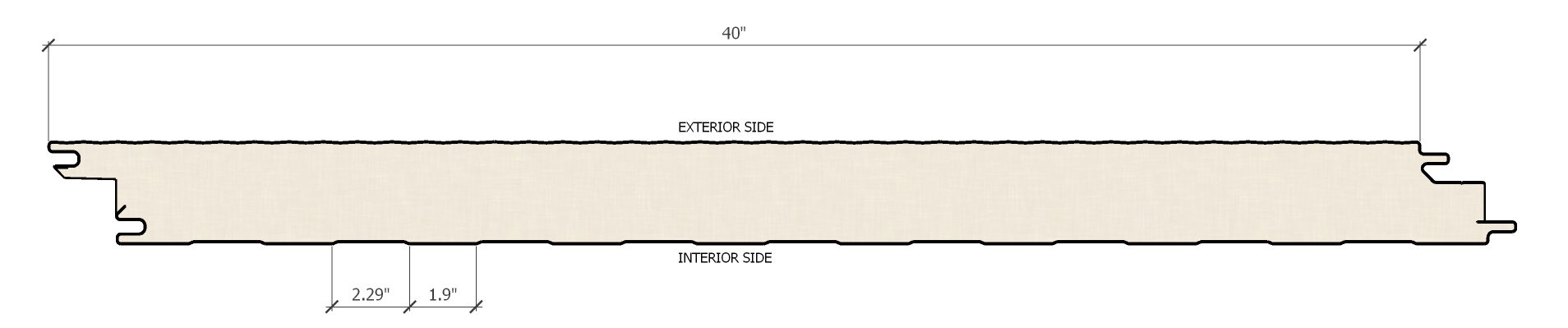

Technical Data

Striated (ST40) Metal Wall Panels

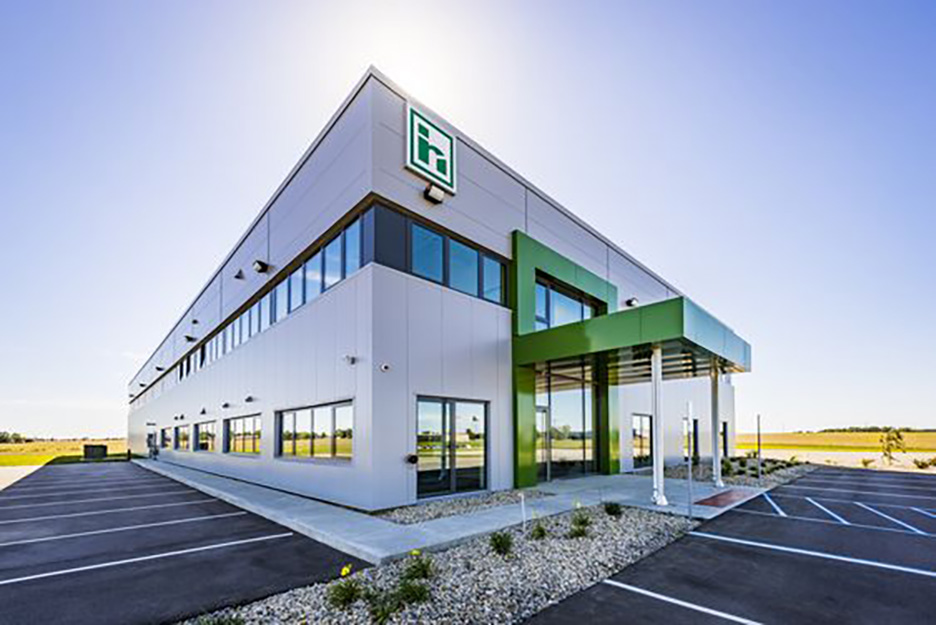

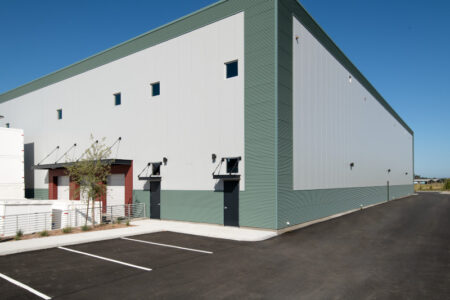

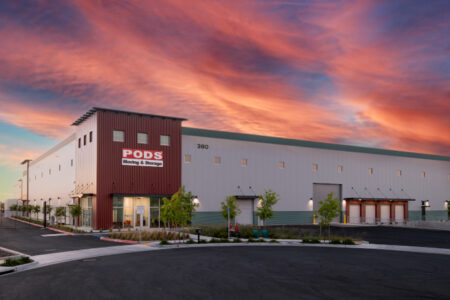

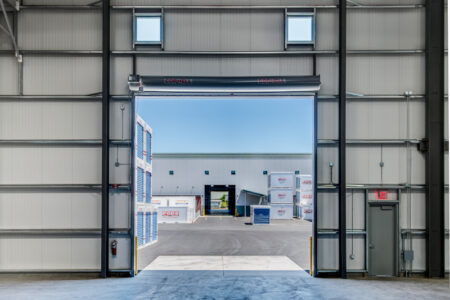

Gallery

Features / Benefits

  • One panel total wall design includes exterior aesthetic, weather barrier, insulation, and
    vapor barrier
  • Composite panel simplifies design, reduces complexity, improves efficiency and reduces installation costs
    reducing construction time and costs
  • The panel’s overlapping joint is self-aligning and allows for easy sealant application at
    the panel joinery
  • Panels are lightweight providing easier handling during installation



Technical Data

Striated (ST40) Metal Wall Panels

Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value  ** Installation Orientation Specialty  Info
Striated (ST40) 40″  Std. 36″ Available 8′ – 40′ Max 2″ 16 Vertical or Horizontal Available in fiRe 1-hour rated panel: ST40-F (4.5” = R-32)
2.5″ 20
3″ 24
4″ 32
** R-Value tested in accordance with ASTM C518 at 35° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Std. Gauge Available Gauge Profile Std. Gauge Available Gauge
Striated (ST40) Embossed & Striated 24 G-90 Galv. 24, 22 Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester  Std. PVDF & SMP Available
