Flat (FL40)

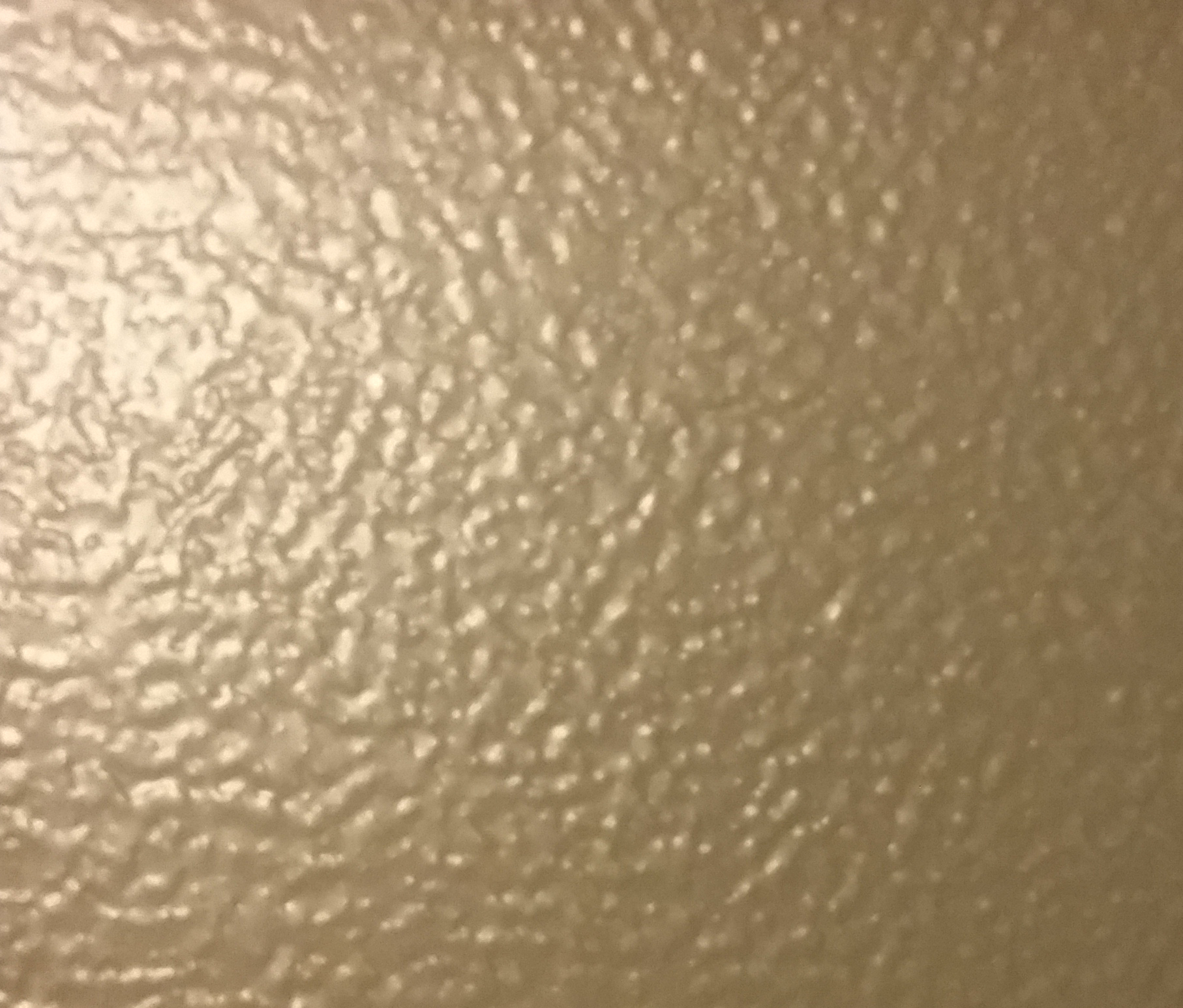

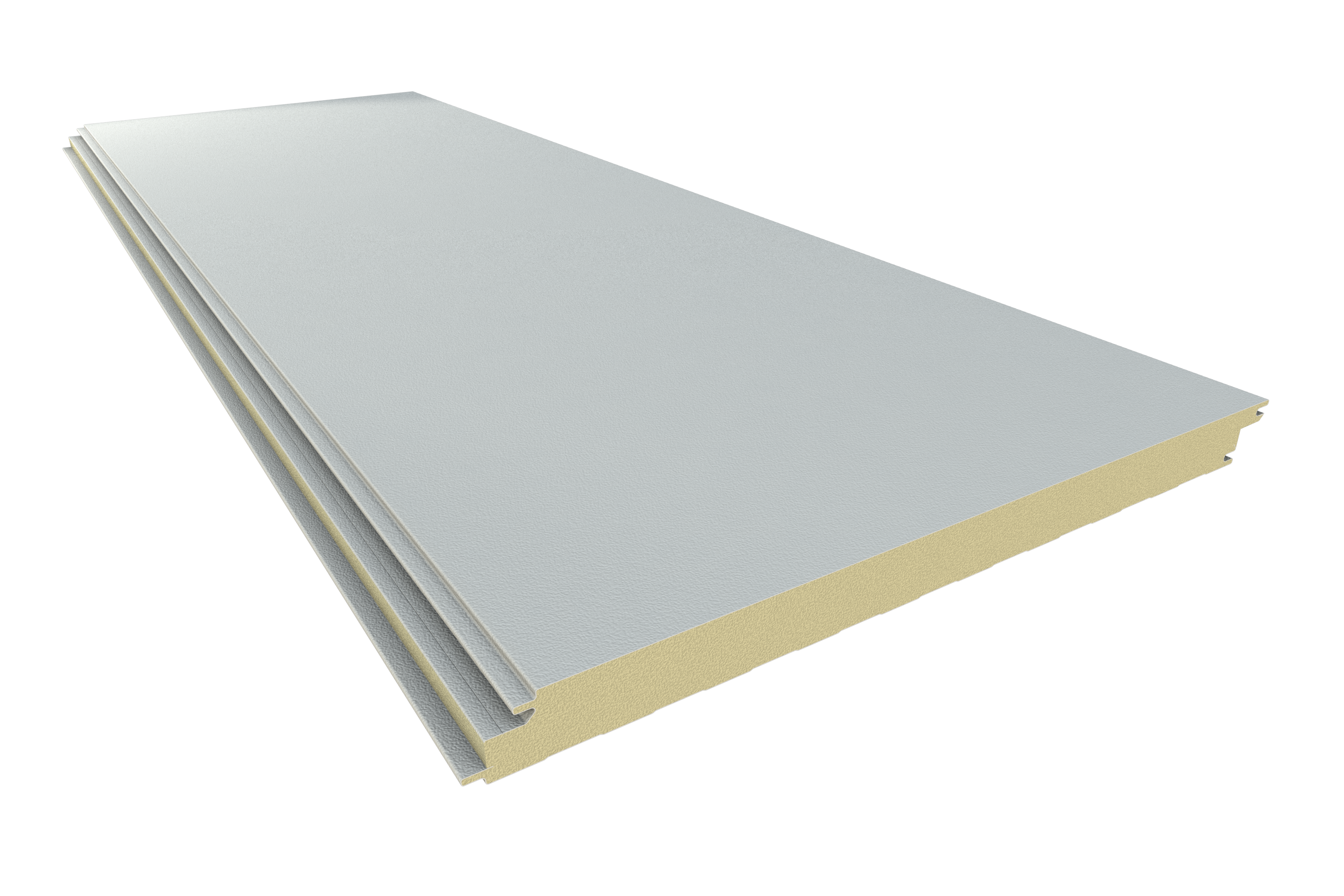

Our Flat Wall (FL40) insulated metal panels captures the clean contemporary style designers seek. Panels are produced with a standard embossed face with all the thermal benefits that insulated metal panels offer including high R-values and long-term energy savings. The Flat Wall (FL40) joinery design accommodates vertical or horizontal application making this one of our most popular products for many commercial applications.

Product Selection

Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value ** Installation Orientation Specialty  Info
Flat (FL40) 36″ & 40″  Std. 8′ – 40′ Max 2″ 16 Vertical or Horizontal Architectural Applications
2.5″ 20
3″ 24
** R-Value tested in accordance with ASTM C518/C1363 at 40° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Sth. Gauge Available Gauge Profile Sth. Gauge Available Gauge
Flat (FL40) Flat Embossed 22  G-90 Galv. _ Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester  Std. PVDF & SMP Available

Technical Data

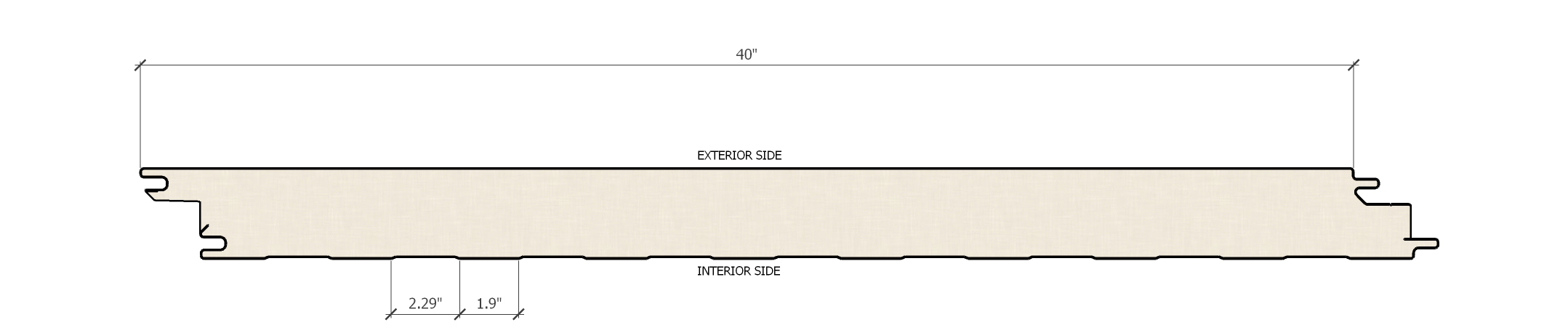

Flat (FL40) Flat Architectural Wall Panel

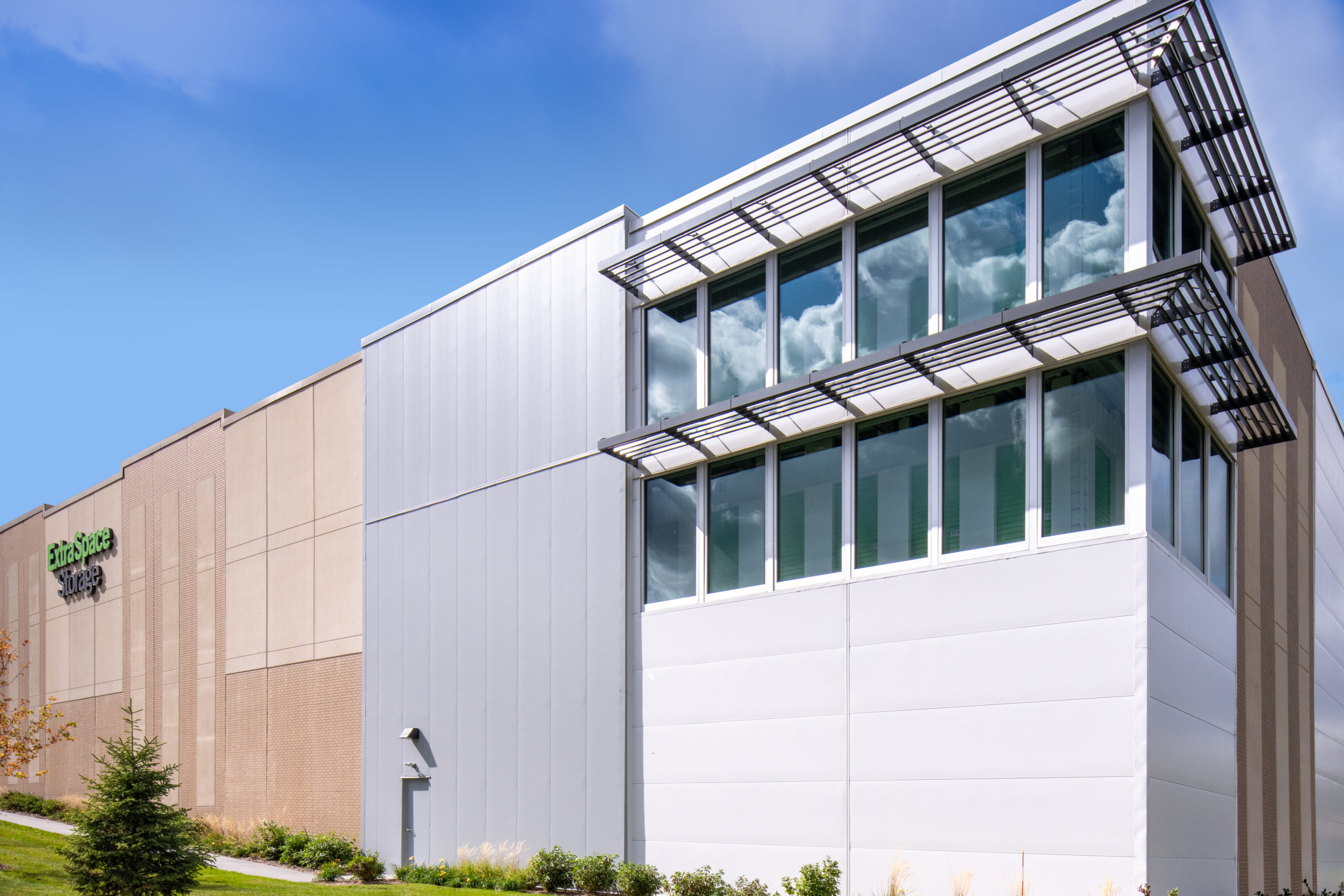

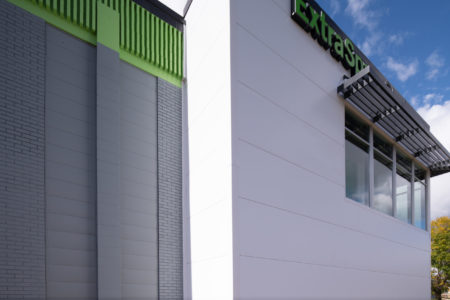

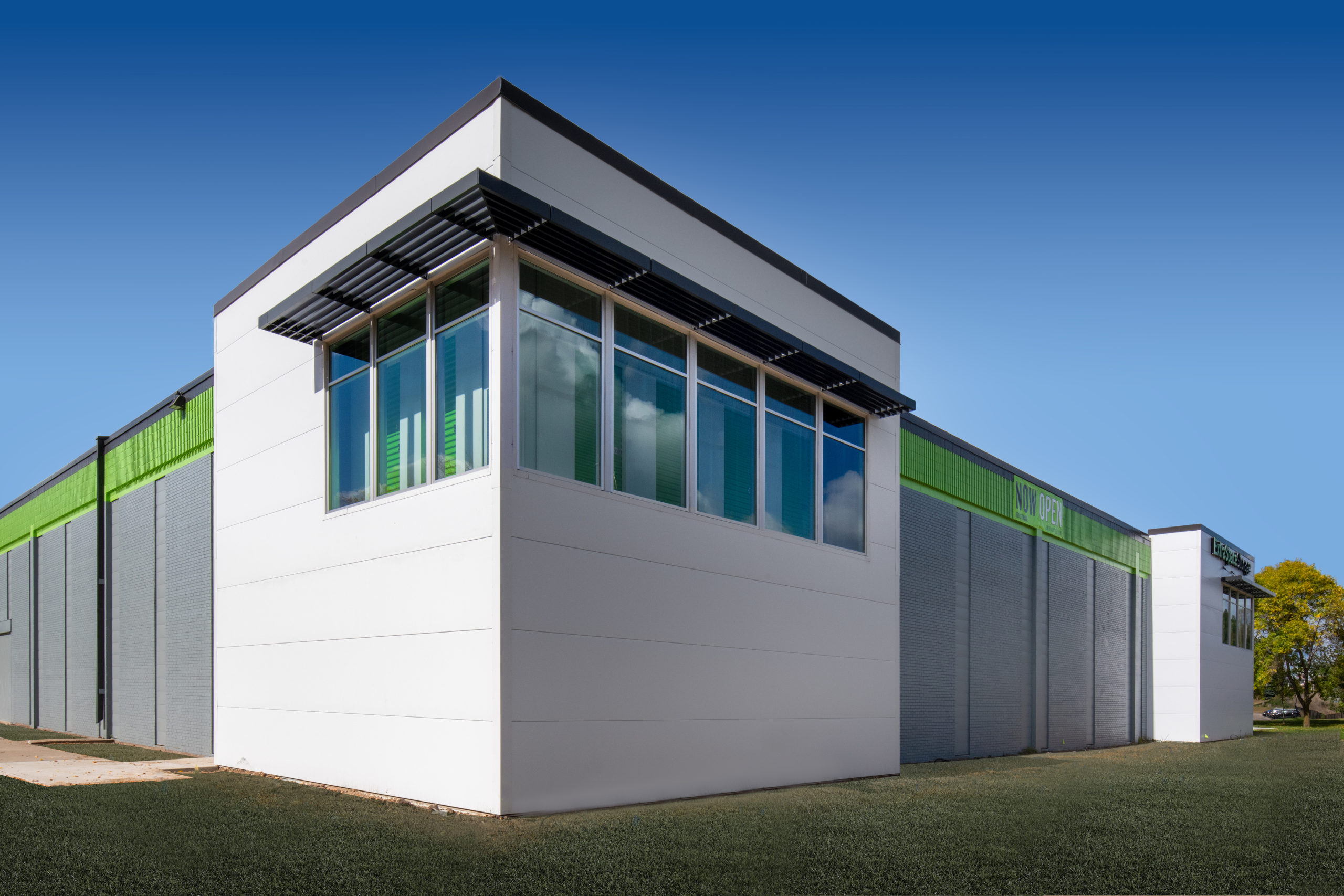

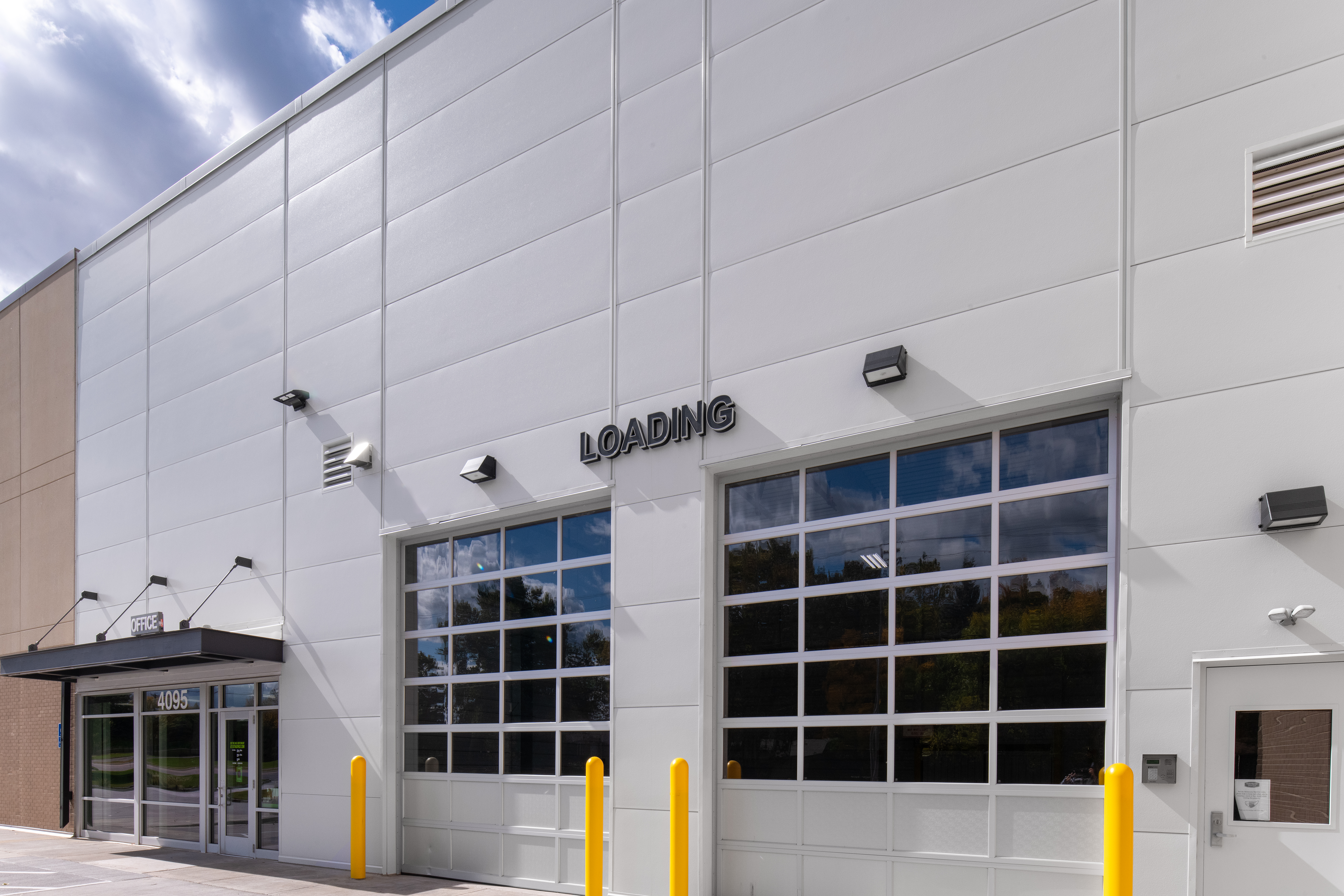

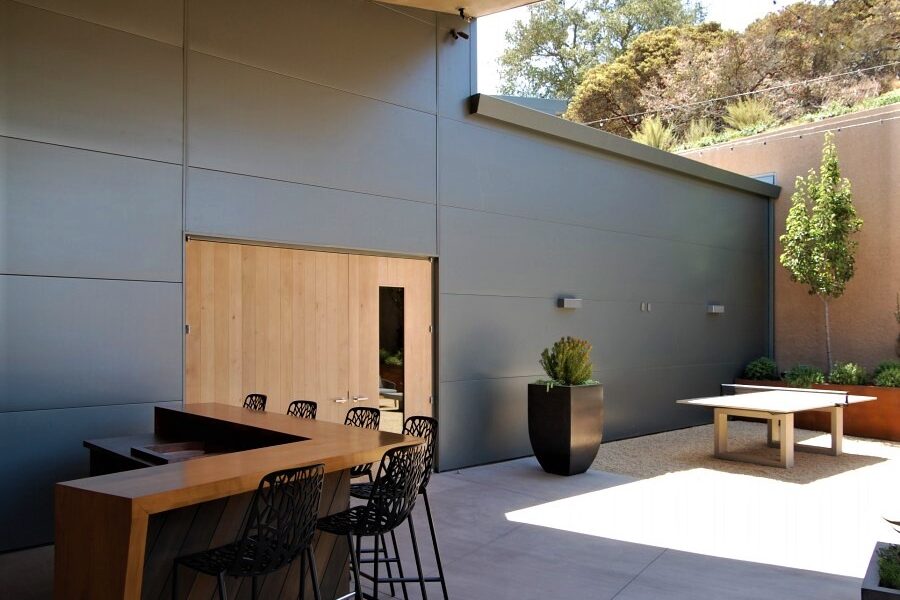

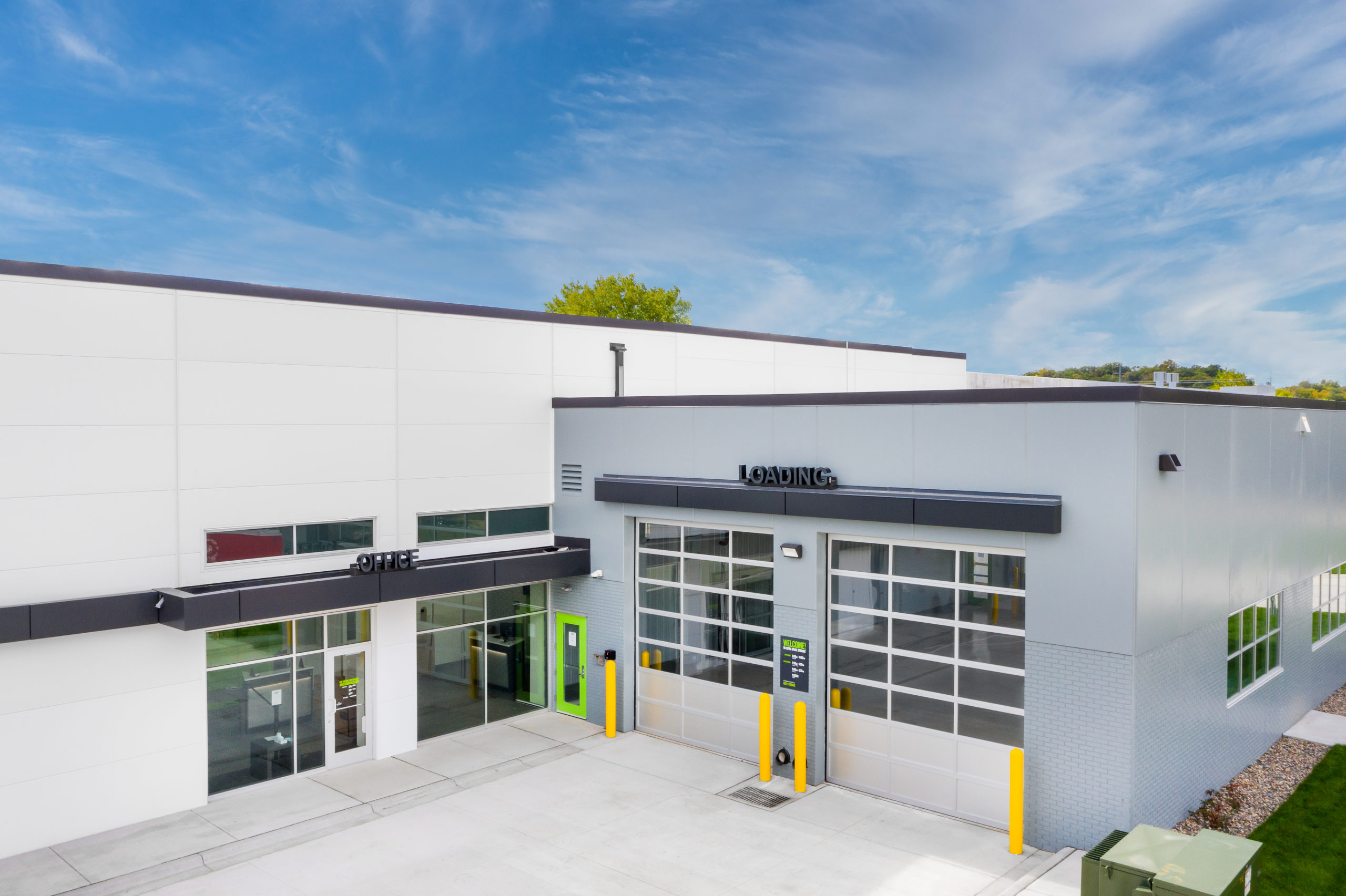

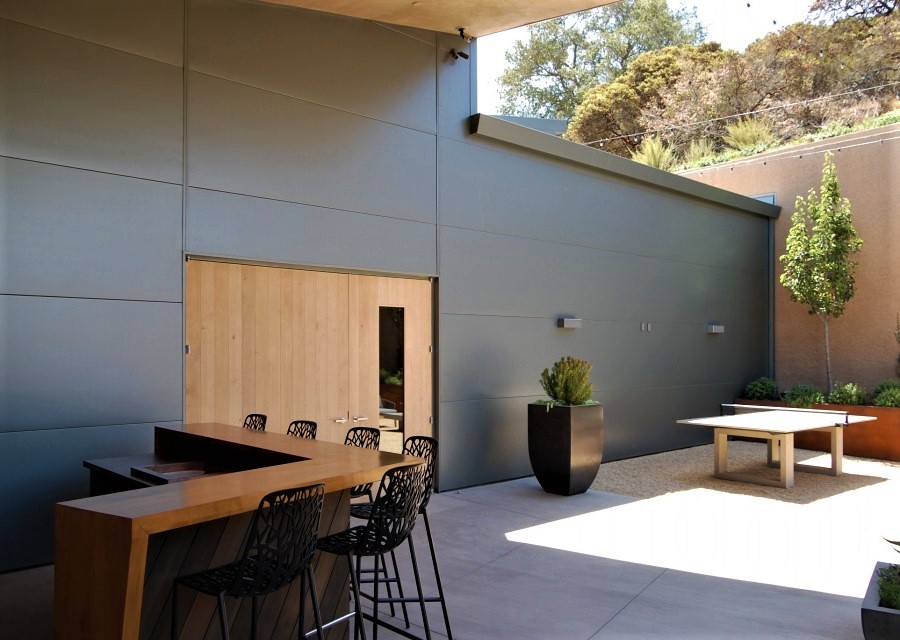

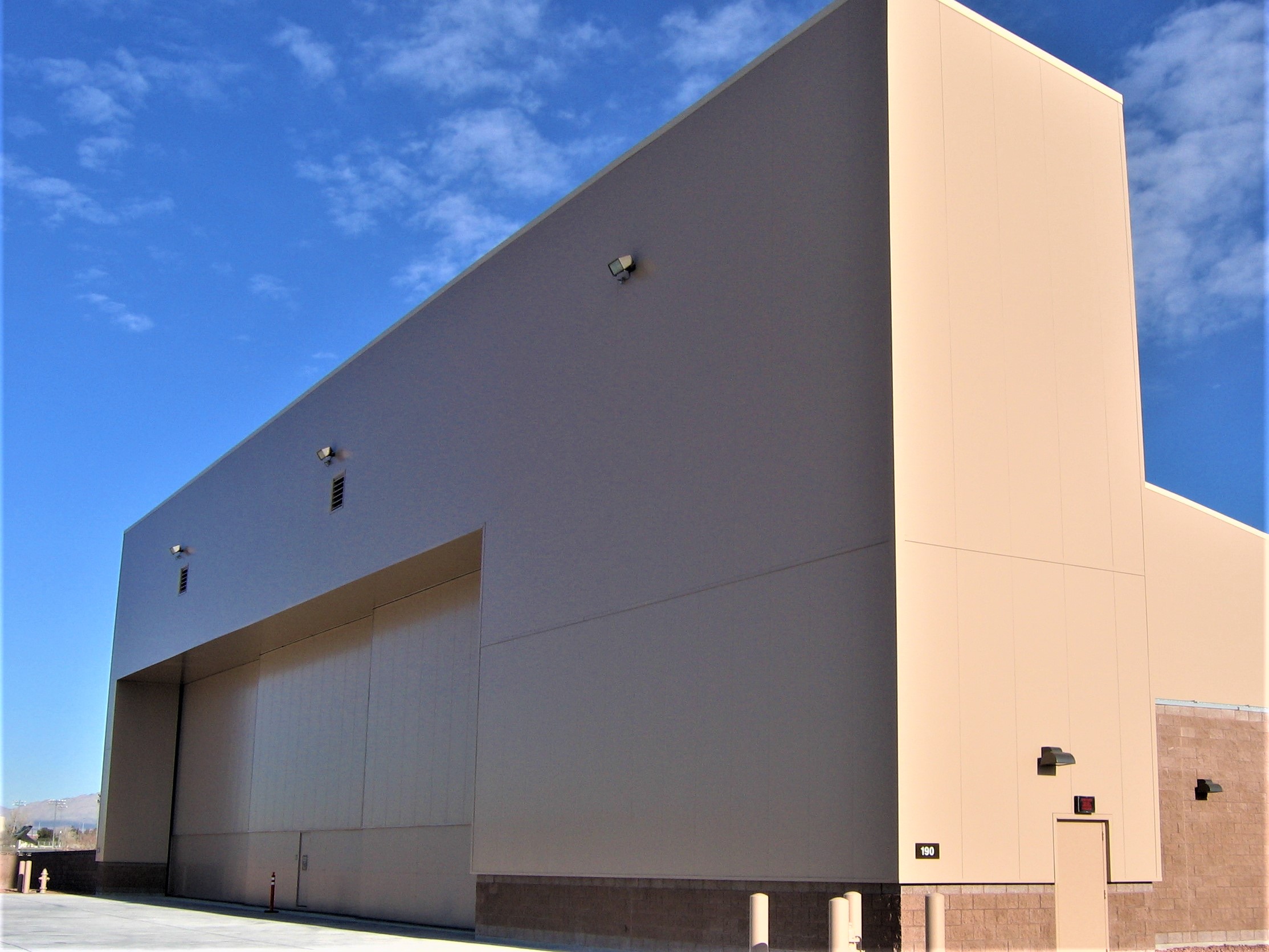

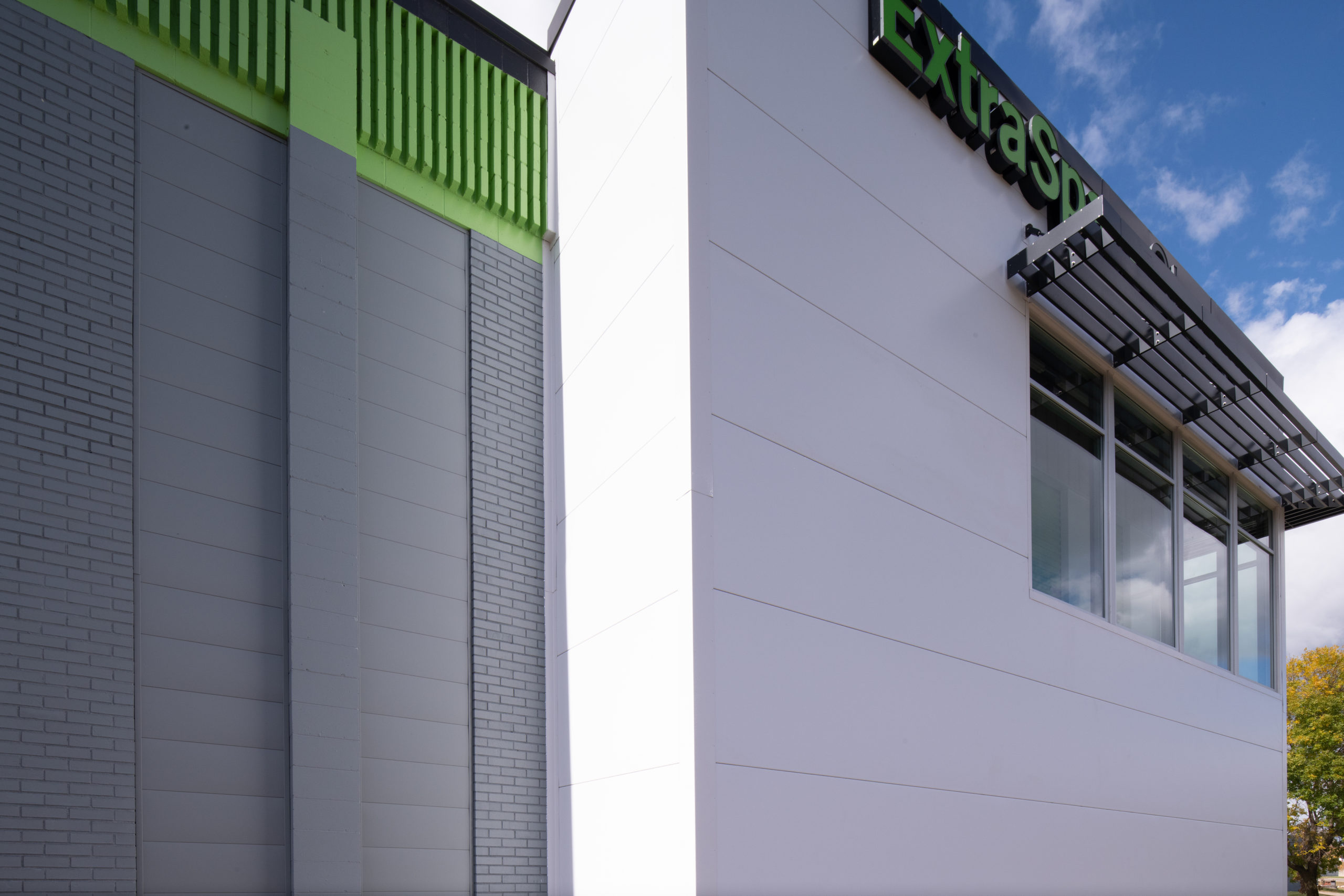

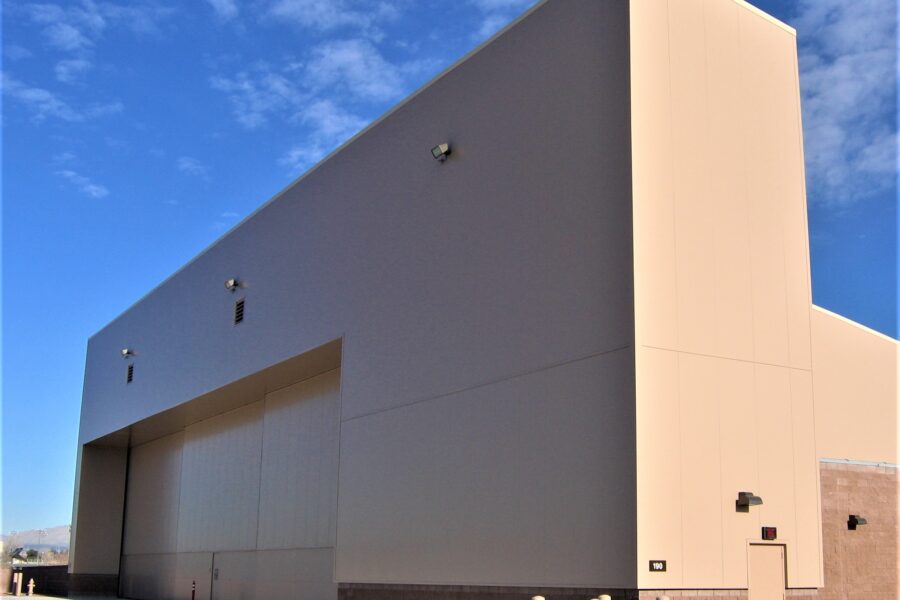

Gallery

Features / Benefits

  • Flat, clean contemporary style
  • Panel joinery is designed to permit installation of the panel in a vertical or horizontal
    position
  • One panel total wall design includes exterior aesthetic, weather barrier, insulation, and
    vapor barrier
  • The panel arrives on site in one piece and requires a simple one-step installation
    reducing construction time and costs
  • High R-values provide long term energy savings

Technical Data

Flat (FL40) Flat Architectural Wall Panel

Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value ** Installation Orientation Specialty  Info
Flat (FL40) 36″ & 40″  Std. 8′ – 40′ Max 2″ 16 Vertical or Horizontal Architectural Applications
2.5″ 20
3″ 24
** R-Value tested in accordance with ASTM C518/C1363 at 40° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Sth. Gauge Available Gauge Profile Sth. Gauge Available Gauge
Flat (FL40) Flat Embossed 22  G-90 Galv. _ Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester  Std. PVDF & SMP Available
