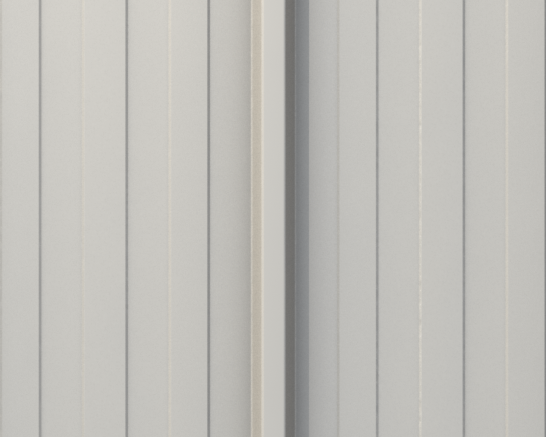

HR Series (HR3)

An economical roof solution for new or retrofit construction. This exposed fastener ribbed roof panel installs faster compared to field-assembled metal roof systems. In addition, our HR series panels reduce the potential for interstitial condensation while providing superior insulation. This allows our HR series panels to meet current energy codes, unlike traditional high rib fiberglass-insulated, screwed-down metal roofs. All AWIP roofing products are suitable for installation over non-combustible substrates only.

Product Selection

Roof Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value Specialty  Info
HR Series (HR3) 40″ 8′ – 50′ Max 1.5″ 12 Minimum Roof Pitch 1:12
2.5″ 20
4″ 32
5″ 41
6″ 49
** R-Value tested in accordance with ASTM C518 at 35° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Roof Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Std. Gauge Available Gauge Profile Std. Gauge Available Gauge
HR Series (HR3) 1-3/8″ Deep Trapazoidal Ribs 20″ o.c. Smooth 26 G-90 Galv. 24, 22 Embossed & Lightly Planked Mesa Ribs 2 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester  Std. PVDF & SMP Available

Technical Data

HR Series (HR3) Insulated Metal Roof and Wall Panels

Features / Benefits

  • This 40” wide panel installs quickly and easily by through fastening into supporting
    members
  • A unique EPDM gasketed saddle washer allows the fastener to be located at the
    standing ribs and out of shed water
  • Superior insulation values to R-49
  • One panel total roof design includes exterior aesthetic, weather barrier, insulation, and
    vapor barrier
  • The panel arrives on site in one piece and requires a simple one-step installation
    reducing construction time and costs
  • The panel’s overlapping joint is self-aligning and allows for easy sealant application at
    the panel joinery

Technical Data

HR Series (HR3) Insulated Metal Roof and Wall Panels

Roof Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value Specialty  Info
HR Series (HR3) 40″ 8′ – 50′ Max 1.5″ 12 Minimum Roof Pitch 1:12
2.5″ 20
4″ 32
5″ 41
6″ 49
** R-Value tested in accordance with ASTM C518 at 35° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Roof Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Std. Gauge Available Gauge Profile Std. Gauge Available Gauge
HR Series (HR3) 1-3/8″ Deep Trapazoidal Ribs 20″ o.c. Smooth 26 G-90 Galv. 24, 22 Embossed & Lightly Planked Mesa Ribs 2 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester  Std. PVDF & SMP Available
