HR Series (HR5)

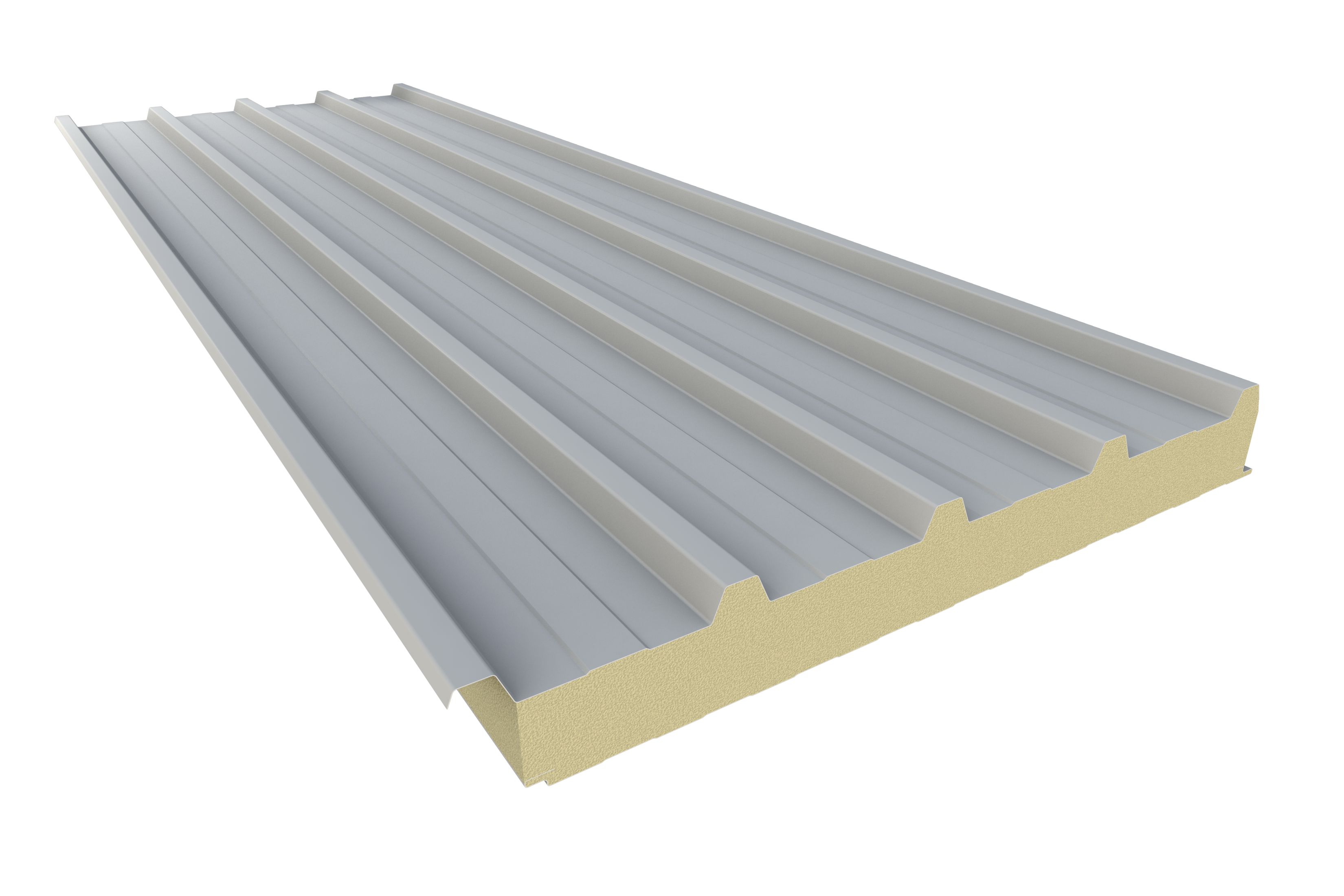

An efficient and economical roof solution for new or retrofit construction. This exposed fastener 10” o.c. ribbed roof panel installs fast reducing construction time and costs. In addition, our HR series panels reduce the potential for interstitial condensation while providing superior insulation. This allows our HR series panels to meet current energy codes, unlike traditional high rib fiberglass-insulated, screwed-down metal roofs.

Product Selection

Roof Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value Specialty  Info
HR Series (HR5) 40″ 8′ – 50′ Max 1.5″ 12 Minimum Roof Pitch 1:12
2.5″ 20
4″ 32
5″ 41
6″ 49
** R-Value tested in accordance with ASTM C518/C1363 at 40° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Roof Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Sth. Gauge Available Gauge Profile Sth. Gauge Available Gauge

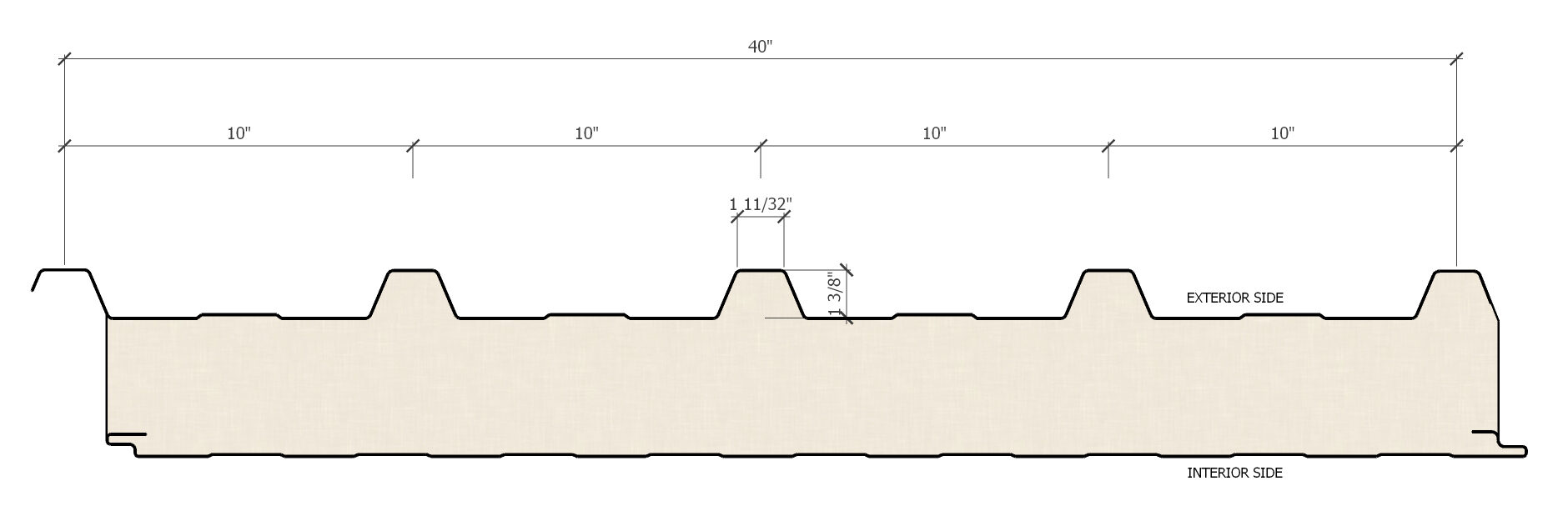

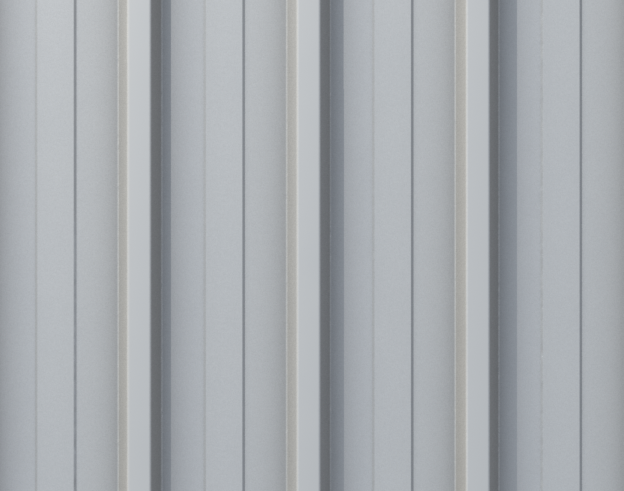

HR Series (HR5) 1-3/8″ Deep Trapazoidal Ribs 10″ o.c. Smooth 26 G-90 Galv. 24, 22 Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester Std. PVDF & SMP Available

Technical Data

HR Series (HR5) Insulated Steel Roof Panels

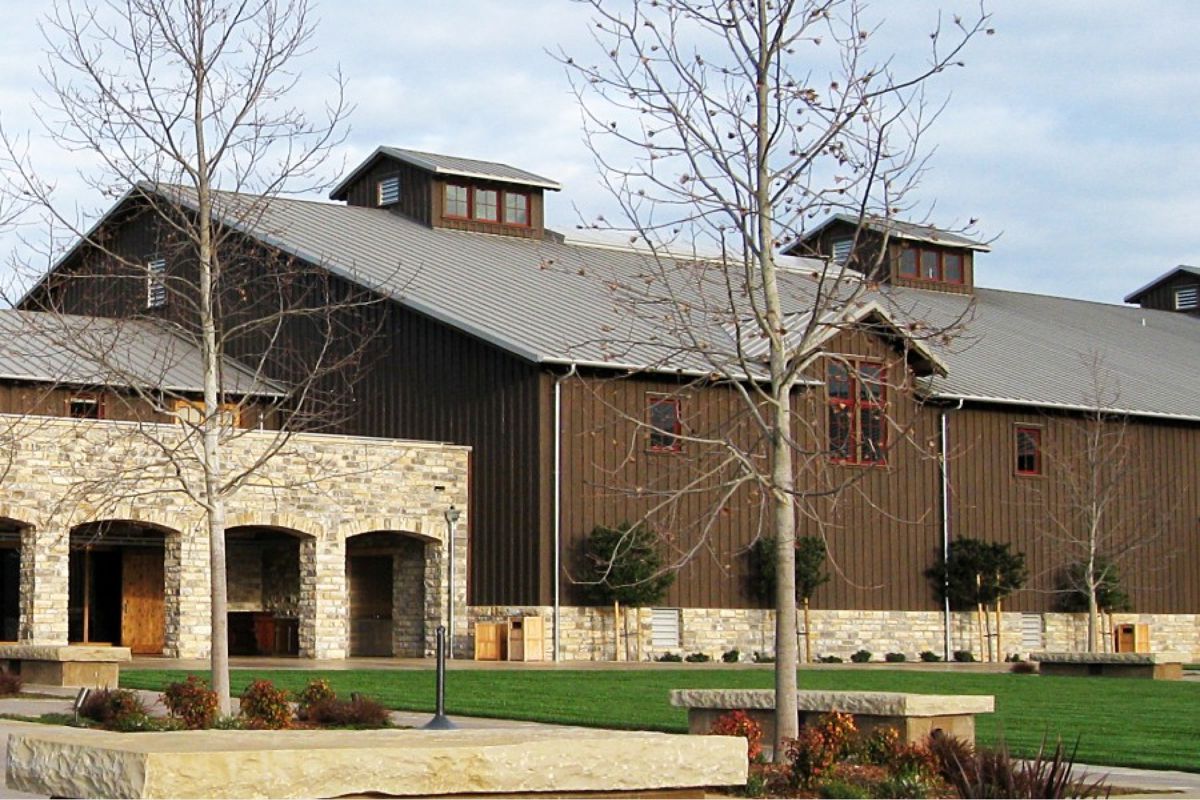

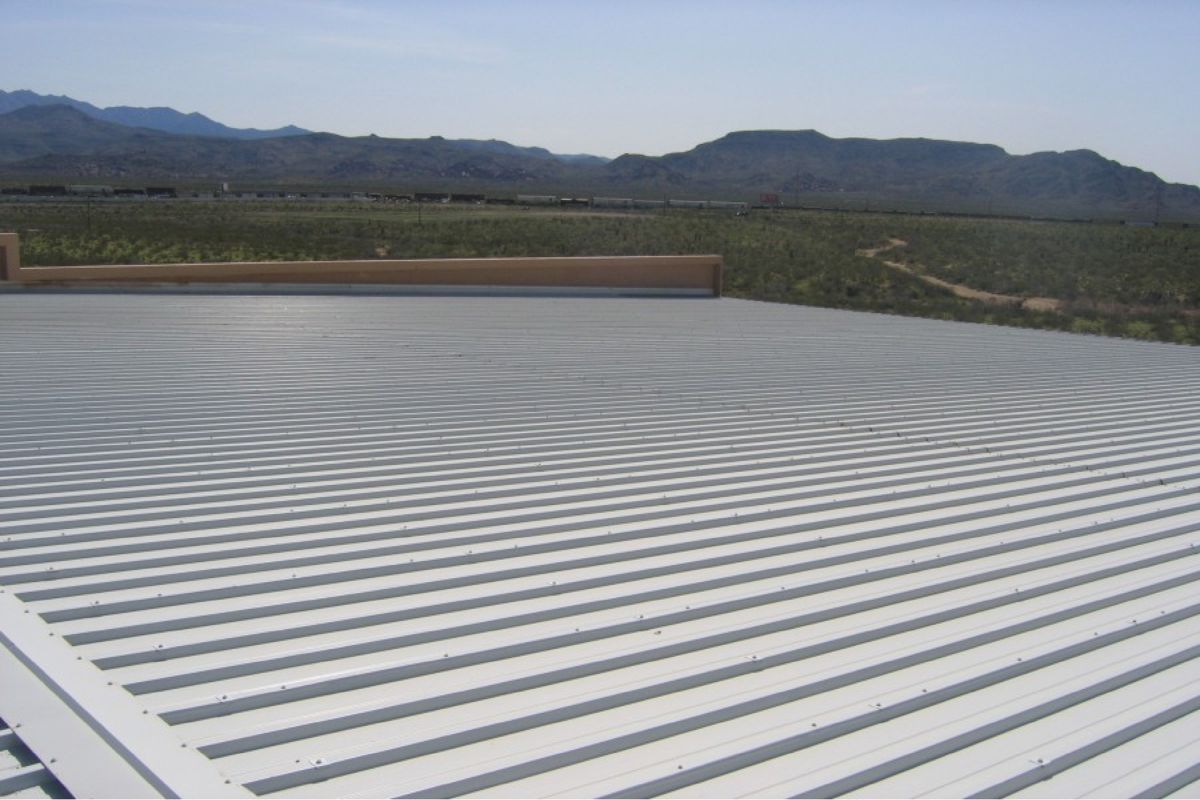

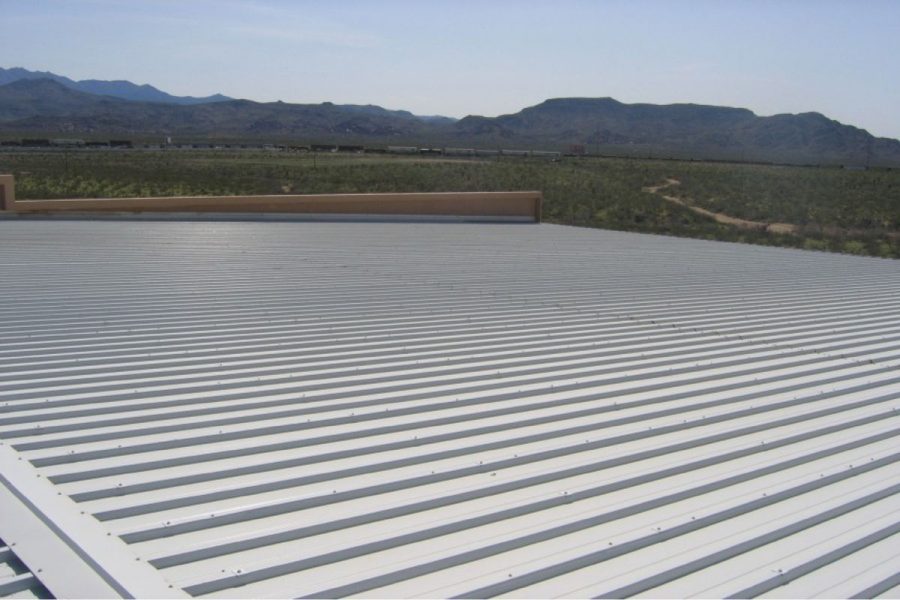

Gallery

Features / Benefits

  • One panel total roof design includes exterior aesthetic, weather barrier, insulation, and
    vapor barrier
  • The panel’s overlapping joint is self-aligning and allows for easy sealant application at
    the panel joinery
  • Superior insulation values to R-49
  • This 40” wide panel installs quickly and easily by through fastening into supporting
    members
  • A unique EPDM gasketed saddle washer allows the fastener to be located at the
    standing ribs and out of shed water

Technical Data

HR Series (HR5) Insulated Steel Roof Panels

Roof Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value Specialty  Info
HR Series (HR5) 40″ 8′ – 50′ Max 1.5″ 12 Minimum Roof Pitch 1:12
2.5″ 20
4″ 32
5″ 41
6″ 49
** R-Value tested in accordance with ASTM C518/C1363 at 40° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Roof Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Sth. Gauge Available Gauge Profile Sth. Gauge Available Gauge
HR Series (HR5) 1-3/8″ Deep Trapazoidal Ribs 10″ o.c. Smooth 26 G-90 Galv. 24, 22 Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester Std. PVDF & SMP Available
