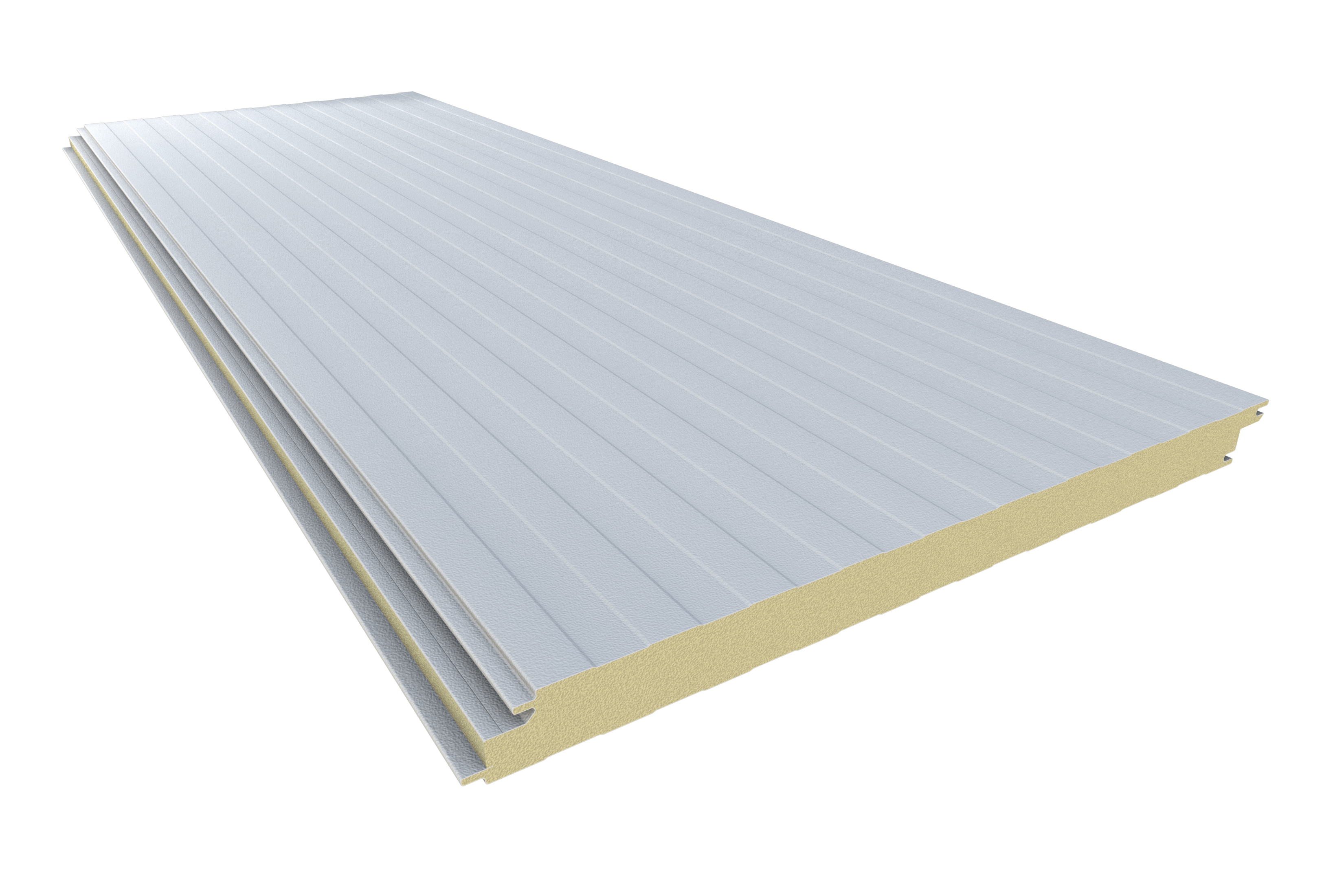

Mesa (DM40)

The perfect economical choice for exterior and interior industrial and cold storage facilities is our Mesa (DM40) insulated metal panel. This panel is available in thicknesses up to 8”, offering superior thermal performance for cold storage buildings. Panels are embossed and lightly planked providing a uniform exterior wall aesthetic. In addition, panels are available in lengths up to 50 feet long which can minimize panel end joint conditions and improve installation time.

Product Selection

Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value  ** Installation Orientation Specialty  Info
Mesa (DM40) 40″ 8′ – 50′ Max 2″ 16 Vertical or Horizontal Industrial & Cold Storage Exterior / Interior Wall & Ceiling Applications
2.5″ 20
3″ 24
4″ 32
5″ 41
6″ 49
8″ 62
** R-Value tested in accordance with ASTM C518/C1363 at 40° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Sth. Gauge Available Gauge Profile Sth. Gauge Available Gauge
Mesa (DM40) Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 & 26 Ga. Stainless Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester  Std. PVDF & SMP Available

Technical Data

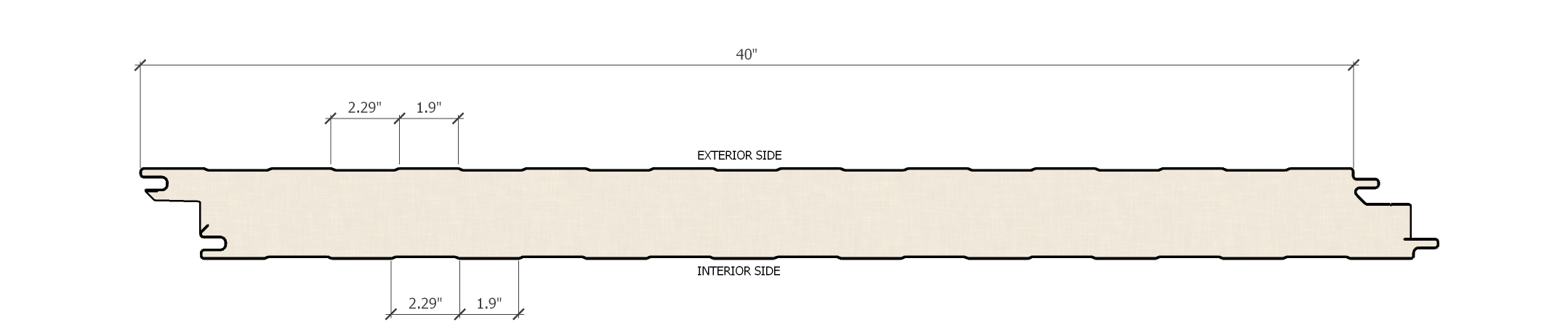

Mesa (DM40) Metal Panel

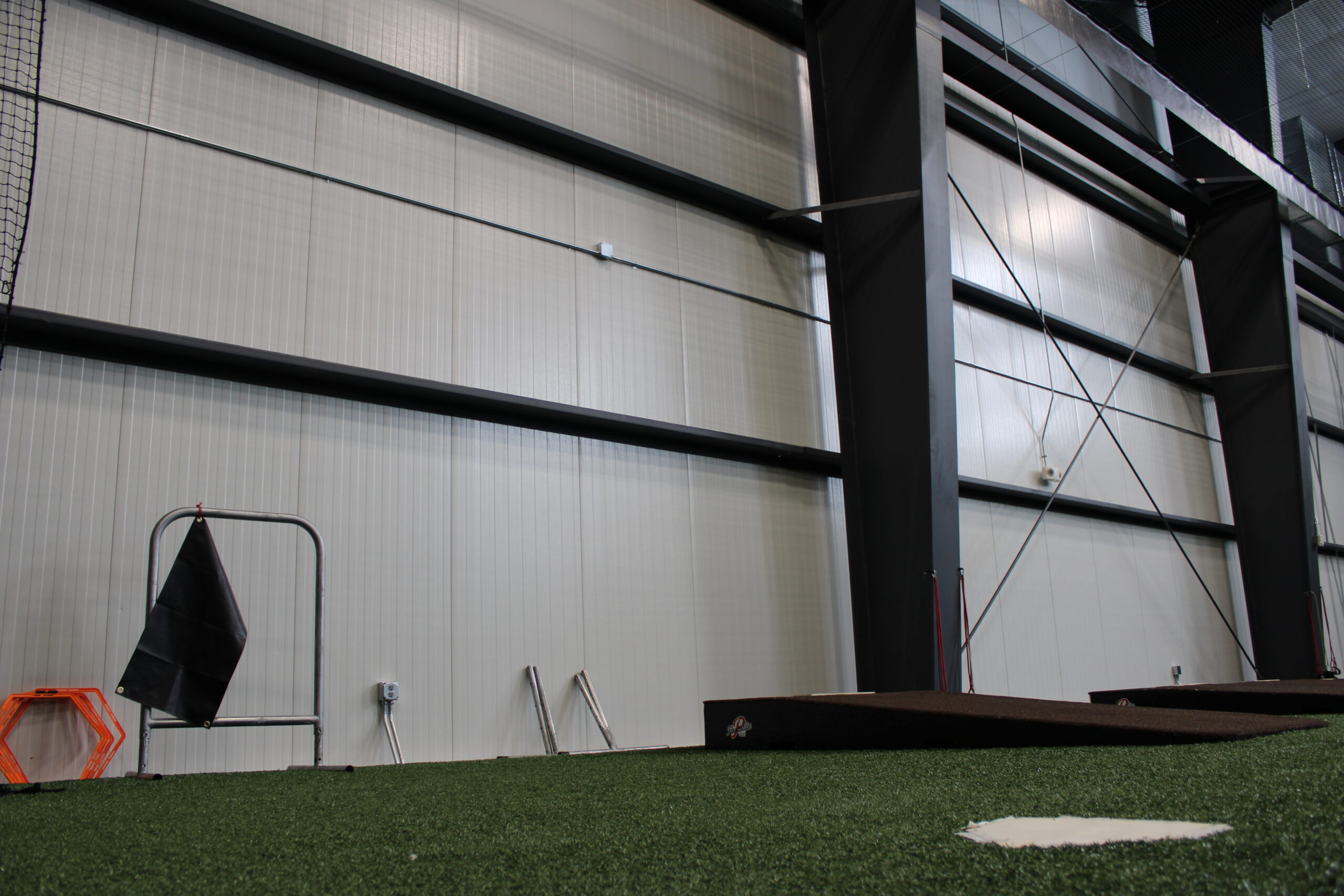

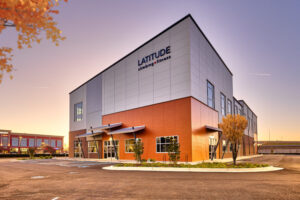

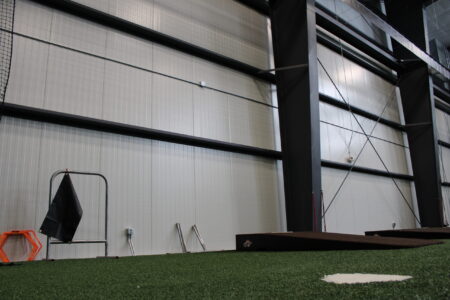

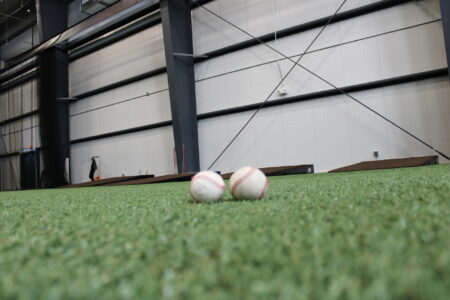

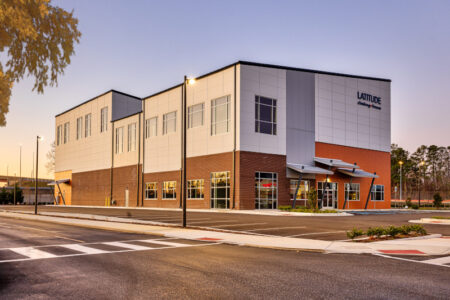

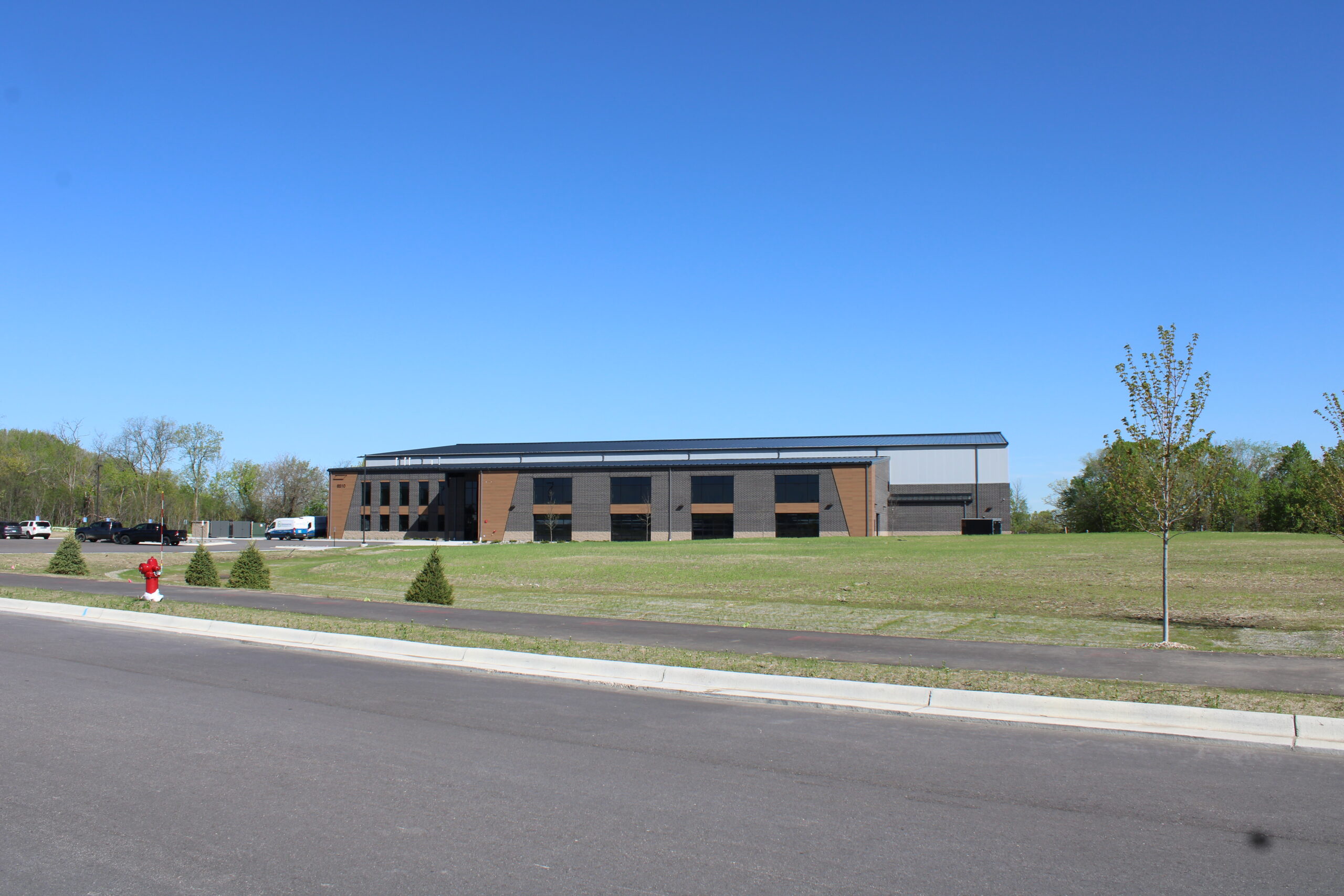

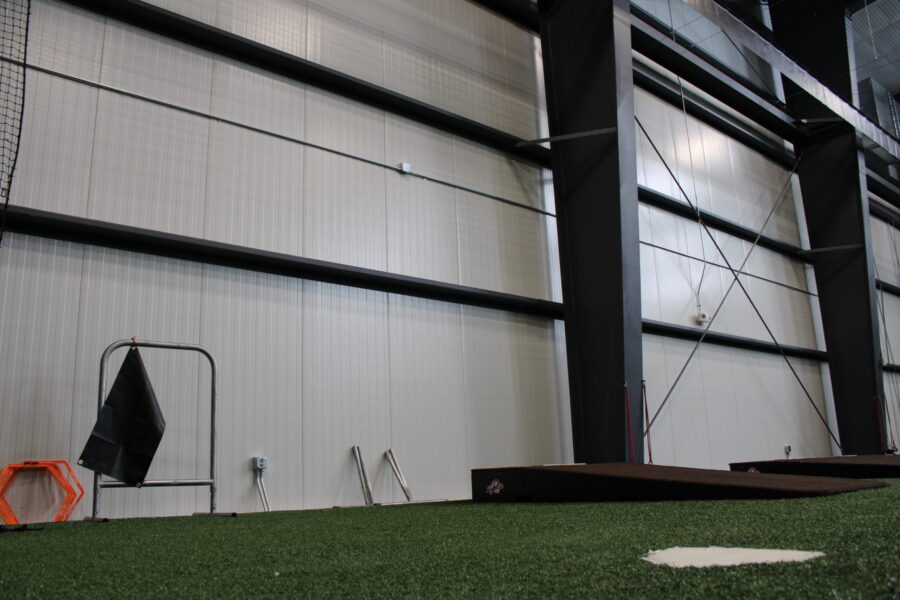

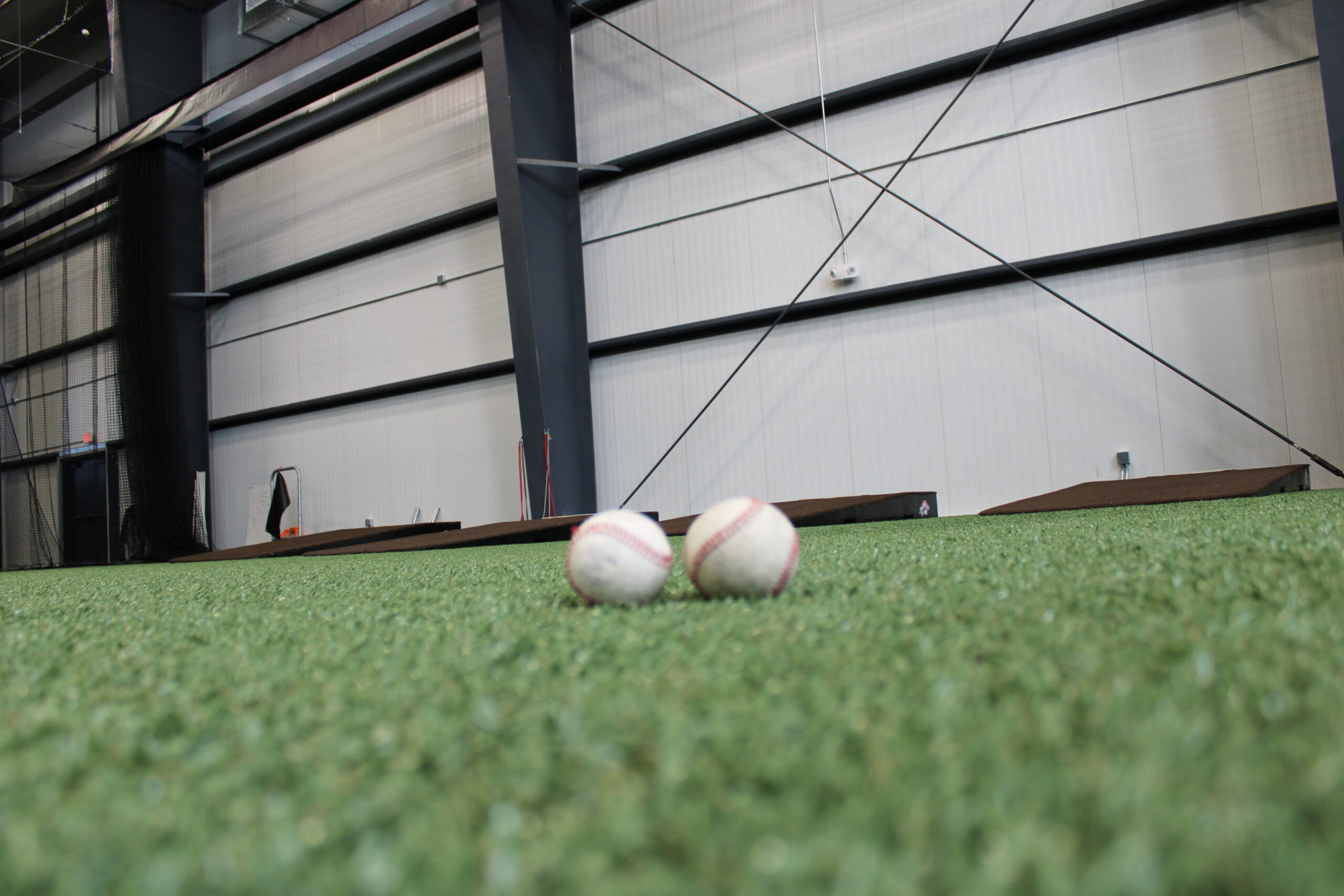

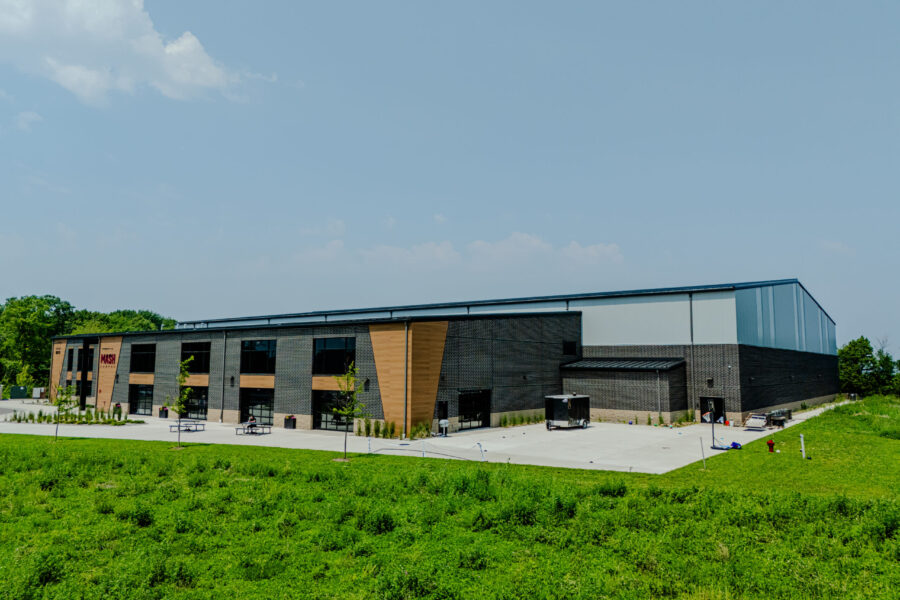

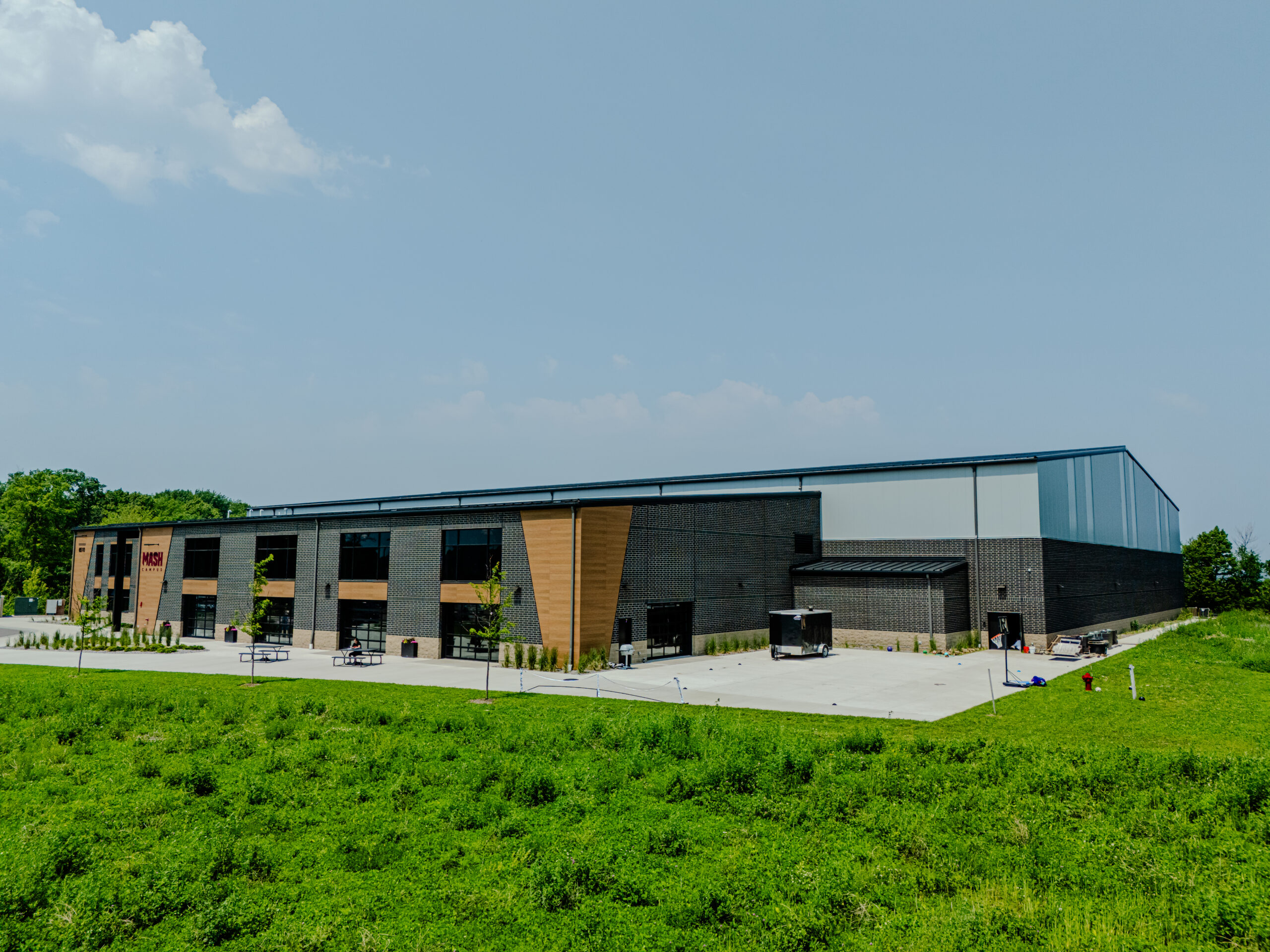

Gallery

Features / Benefits

  • Economical insulated metal panel for commercial, industrial and cold storage facilities

  • High R-values up to R-62 for an 8” thick panel provides long term energy savings
  • Panel joinery is designed to permit installation of the panel in a vertical or horizontal
    position
  • Composite panel simplifies design, reduces complexity, improves efficiency and reduces installation costs
  • One panel total wall design includes exterior aesthetic, weather barrier, insulation, and
    vapor barrier

Technical Data

Mesa (DM40) Metal Panel

Panel Width(s) Lengths Thicknesses Insulating Properties   “R” Value  ** Installation Orientation Specialty  Info
Mesa (DM40) 40″ 8′ – 50′ Max 2″ 16 Vertical or Horizontal Industrial & Cold Storage Exterior / Interior Wall & Ceiling Applications
2.5″ 20
3″ 24
4″ 32
5″ 41
6″ 49
8″ 62
** R-Value tested in accordance with ASTM C518/C1363 at 40° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Sth. Gauge Available Gauge Profile Sth. Gauge Available Gauge
Mesa (DM40) Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 & 26 Ga. Stainless Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester  Std. PVDF & SMP Available
