Standing Seam (SR2)

Want the look of a traditional metal standing seam roof with all the benefits of an insulated metal panel? Try our Standing Seam roof profile which offers a field seamed, hidden fastener joinery for maximum protection against the elements and the architectural appeal of a standing seam roof. All AWIP roofing products are suitable for installation over non-combustible substrates only.

Product Selection

Roof Panel Width(s) Lengths Thicknesses Insulating Properties “R” Value  ** Specialty Info
Standing Seam (SR2) 40″ 8′ to 50′ Max 3.25″ 26
4″ 32
5″ 41
6″ 49
** R-Value tested in accordance with ASTM C518 at 35° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Roof Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Std. Gauge Available Gauge Profile Std. Gauge Available Gauge
Standing Seam (SR2) Standing Seam Embossed Smooth 26 G-90 Galv. 24, 22 Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester Std. PVDF & SMP Available

Technical Data

Standing Seam (SR2) Roof Panel

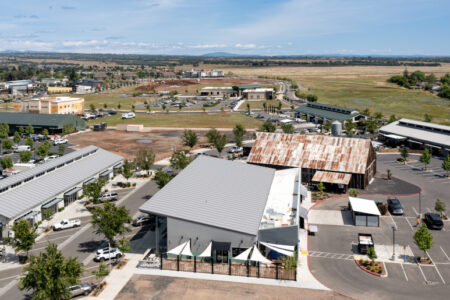

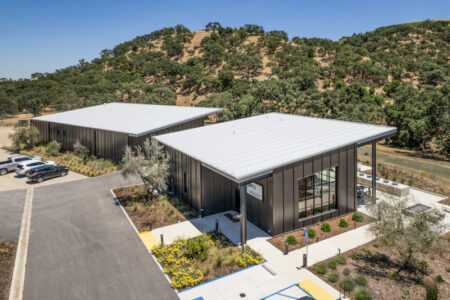

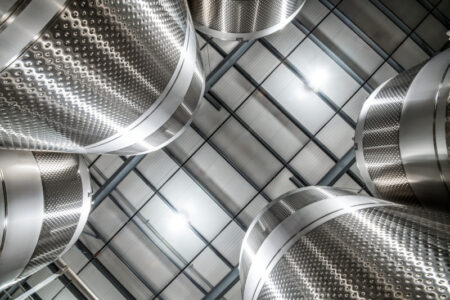

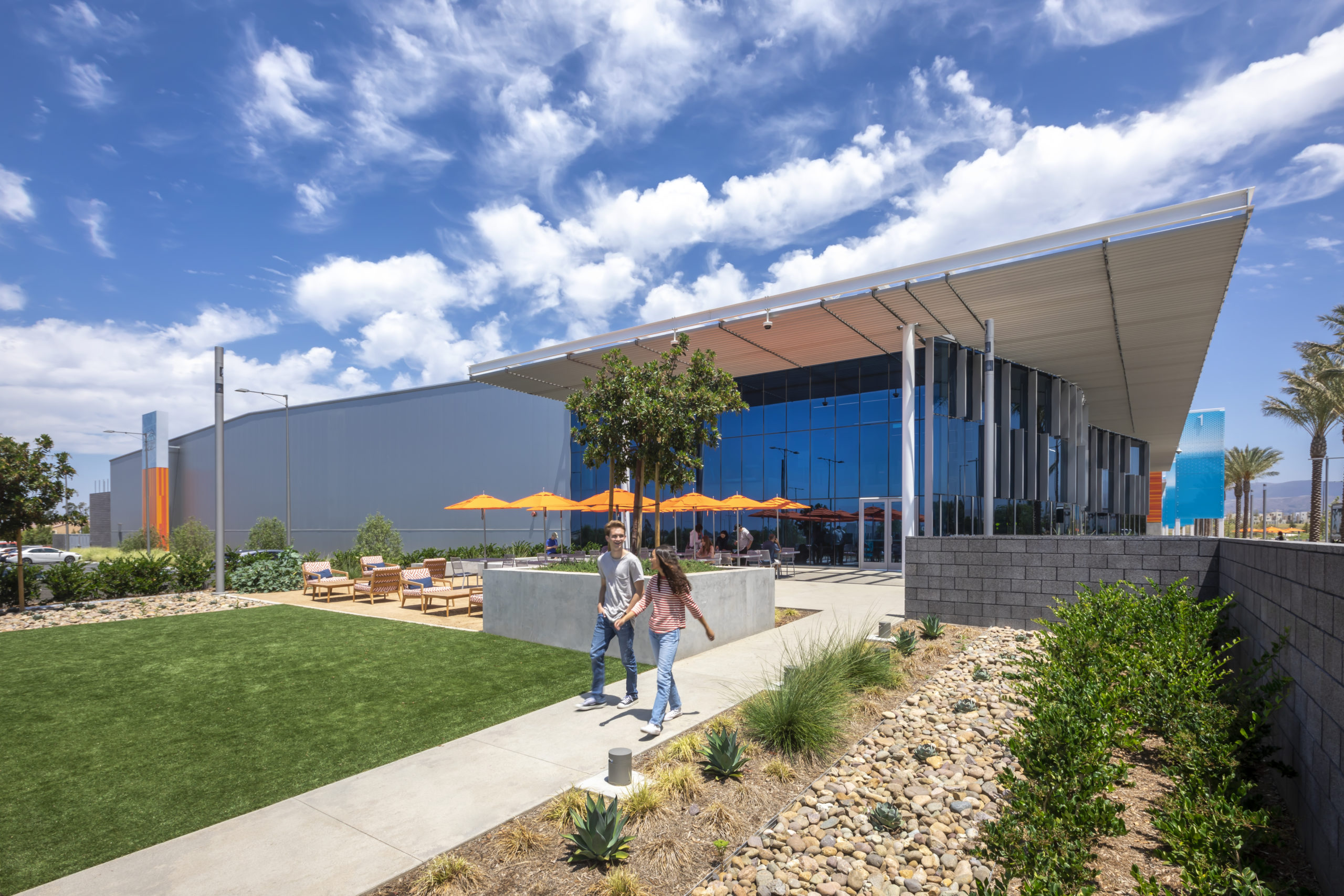

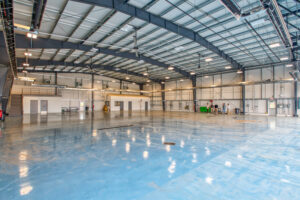

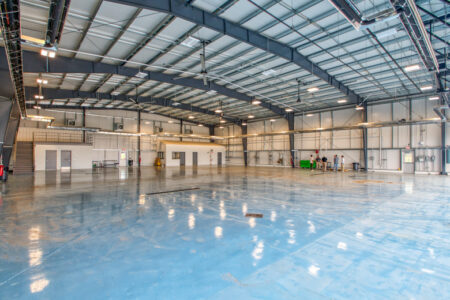

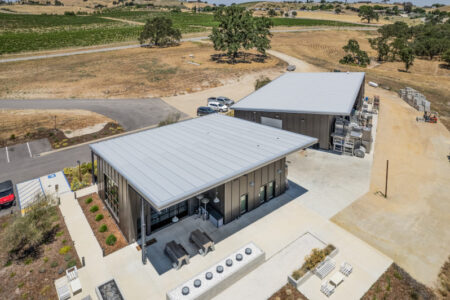

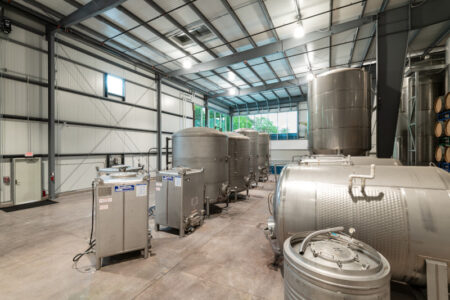

Gallery

Features / Benefits

  • One panel total standing seam metal roof design includes exterior aesthetic, weather
    barrier, insulation, and vapor barrier
  • Composite panel simplifies design, reduces complexity, improves efficiency and reduces installation costs
  • The trapezoidal standing rib design provides added strength against potential foot traffic
    damage
  • Panels are lightweight providing easier handling during installation

Technical Data

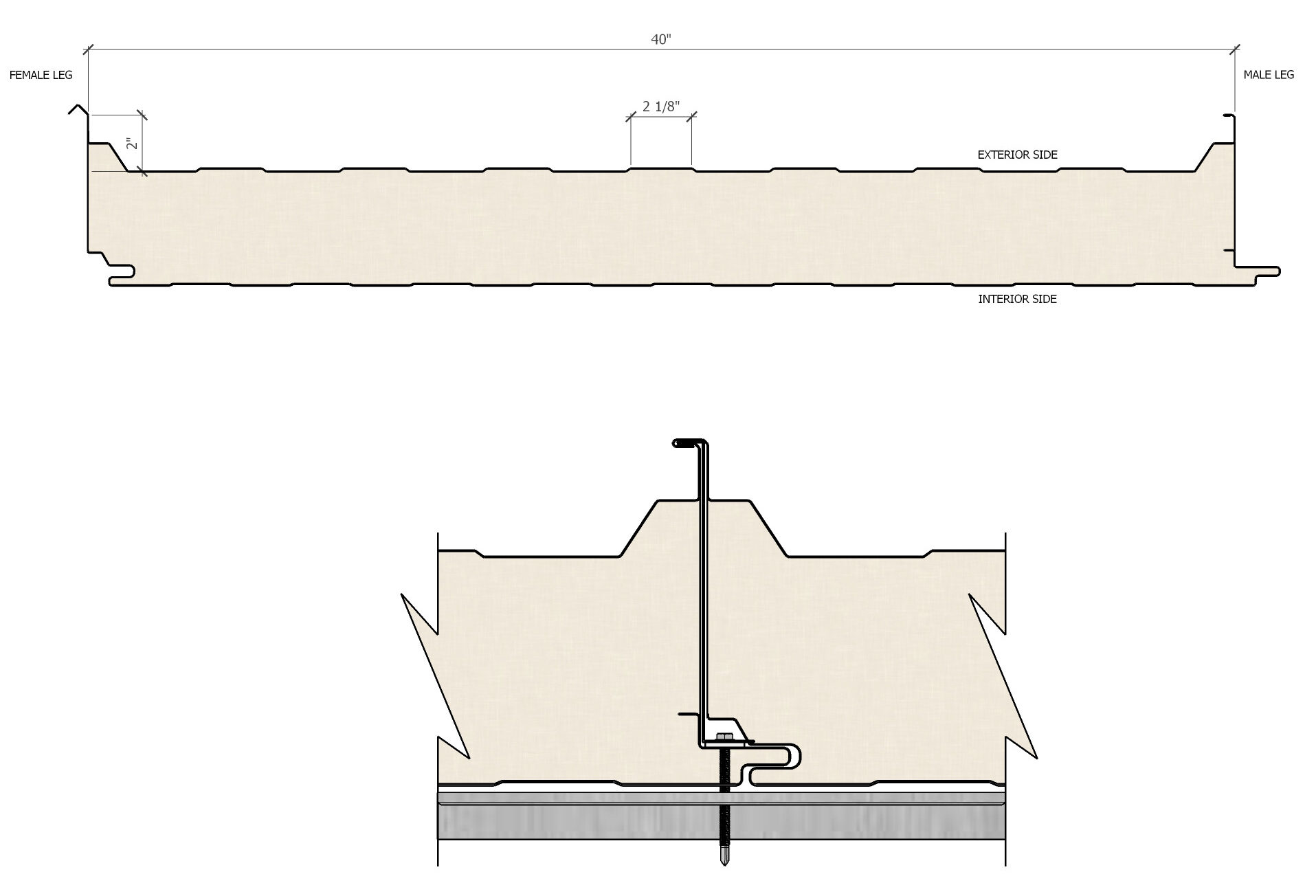

Standing Seam (SR2) Roof Panel

Roof Panel Width(s) Lengths Thicknesses Insulating Properties “R” Value  ** Specialty Info
Standing Seam (SR2) 40″ 8′ to 50′ Max 3.25″ 26
4″ 32
5″ 41
6″ 49
** R-Value tested in accordance with ASTM C518 at 35° F mean temperature adjusted for a windspeed of 15 mph.
*Consult AWIP for required panel lengths longer than the published standard. (Exception – All fire rated panels)
Roof Panel Metal Metal Finish
Exterior Interior Exterior Interior
Profile Std. Gauge Available Gauge Profile Std. Gauge Available Gauge
Standing Seam (SR2) Standing Seam Embossed Smooth 26 G-90 Galv. 24, 22 Embossed & Lightly Planked Mesa Ribs 26 G-90 Galv. 24, 22 PVDF Std. SMP Available Polyester Std. PVDF & SMP Available
